    Constant Temperature Humidity Chamber Laboratory Test Machine

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E702
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Constant Temperature Humidity Chamber Laboratory Test Machine

    Constant Temperature And Humidity Chamber Laboratory Test Machine


    HD-E702-100-7 Climate Chamber.pdf


    Introduction:

    Constant Humidity and Temperature Control Test Machine is tested for performance index about the relate components and material of the electron, motors, aviation, ship weapon and high college research institutions and so on under the cyclic changes in high and low temperature.


    International Applications

    HD series chambers meet international test performance standards. The units can be installed around the world for consistent testing at different facilities, supported by Haida Group and our cooperation prater in Australia, Dubai, India, Malaysia, Turkey and Vietnam. And our chambers feature two levels of overheat protection, and one levels of overcool protection. The system controller provides alarm messages with specific troubleshooting help to quickly resume testing.


    1. Features of Constant Humidity and Temperature Control Test Machine:


    The HD series chambers have temperature change rates from 1 to 3°C per minute in average and controlled humidity from 10% to 95%. There are 6 sizes with interior volumes of 100 to 1000 Liters or we also provide tailor-made chambers of size. On the advance model for Cycling Chambers have temperature change rates from 3 to 15 °C, controlled humidity from 10 to 95%.


    Standard Features:

    • Stainless# 304 steel for interior
    • Paint steel for exterior
    • Foam-insulated door for rigidity and long life
    • Plastic water tank easy for maintenance
    • Observation Window with frost free function
    • High performance refrigeration system
    • Easy user interface for TEMI-880 PLC controller
    • One 100mm cable port/ Customer specified
    • One shelve, 10 Kg loading & 4 casters included
    • Van Type Sirocco,L134,Fan
    • PID controlled-Stainless Steel Humidifier
    • DuPont R-404A [No Fluorine] Refrigerant / 23 for below -40 °C
    • USB port for data output
    • Anti-explosive interior lamps
    • Data logging chart recorders, paperless recorders stored data in the PLC.

    2. Specifications of Constant Humidity and Temperature Control Test Machine:


    Range – 40 to 150°C


    Temp/Humidity

    HD-E702-100-4

    HD-E702-150-4

    HD-E702-225-4


    HD-E702-408-4

    HD-E702-800-4

    HD-E702-1000-4

    Temp-only

    HD-E702-100T-4

    HD-E702-150T-4

    HD-E702-225T-4


    HD-E702-408T-4

    HD-E702-800T-4

    HD-E702-1000T-4

    Temperature Range:

    -40°C ~150°C

    Cooling Capacity

    ~ 2 kW at -20°C

    ~ 2.5 kW at -20°C

    ~ 4.5 kW at -20°C

    ~ 5.5 kW at-20°C

    ~ 8 kW at -20°C

    ~ 8.5 kW at - -20°C

    Heating System

    ~ 5 kW

    ~ 5 kW

    ~ 5.5 kW

    ~6.5 kW

    ~ 8.5 kW

    ~ 9 kW

    Temperature Fluctuation:

    ±0.5°C

    Temperature Gradient:

    ±0.5°C~±0.2°C

    Heating Rate†:

    ≥3℃ / min average ( Advance model 5 – 15 ℃ / min)

    Cooling Rate†:

    ≥1℃ / min average (Advance model 5 - 15℃ / min)

    Humidity Range:

    10%~95%RH (Ref to Normal Humidity Range Diagramed)

    Humidity Fluctuation:

    ±1.5%RH~±2.0%RH

    Humidity Gradient:

    ±3%RH

    Dimensions

    Workspace dimensions
    (WxDxH)mm:

    500x400x500

    HD-E702-100

    600x500x500

    HD-E702-150

    750x500x600

    HD-E702-225


    850x650x800

    HD-E702-800

    1000x1000x800

    HD-E702-800

    1000x1000x1000

    HD-E702-1000

    Exterior dimensions
    (WxDxH)mm:

    1400x850x1050

    1500x950x1050

    1650x950x1150


    1750x1050x1350

    1900x1450x1350

    1900x1450x1550

    Site Requirements

    Electrical Supply:

    208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)

    Humidity Water

    Distilled Water

    Condensate Drain:

    1/2" hose connection (gravity drain)

    Range – 70 to 150°C

    Temp/Humidity

    HD-E702-100-7

    HD-E702-150-7

    HD-E702-225-7


    HD-E702-408-7

    HD-E702-800-7

    HD-E702-1000-7

    Temp-only

    HD-E702-100T-7

    HD-E702-150T-7

    HD-E702-225T-7


    HD-E702-408T-7

    HD-E702-800T-7

    HD-E702-1000T-7

    Temperature Range:

    -70°C ~150°C

    Cooling Capacity

    ~ 2.5 kW at -50°C

    ~ 3 kW at -50°C

    ~ 5 kW at -50°C

    ~ 6.5 kW at-50°C

    ~ 8.5 kW at -50°C

    ~ 9 kW at - -50°C

    Heating System

    ~ 5 kW

    ~ 5 kW

    ~ 5.5 kW

    ~6.5 kW

    ~ 8.5 kW

    ~ 9 kW

    Temperature Fluctuation:

    ±0.5°C

    Temperature Gradient:

    ±0.5°C~±0.2°C

    Heating Rate†:

    ≥3℃ / min average ( Advance model 5 – 15 ℃ / min)

    Cooling Rate†:

    ≥1℃ / min average (Advance model 5 - 15℃ / min)

    Humidity Range:

    10%~95%RH (Ref to Normal Humidity Range Diagramed)

    Humidity Fluctuation:

    ±1.5%RH~±2.0%RH

    Humidity Gradient:

    ±3%RH

    Dimensions

    Workspace dimensions
    (WxDxH)mm:

    500x400x500

    HD-E702-100

    600x500x500

    HD-E702-150

    750x500x600

    HD-E702-225


    850x650x800

    HD-E702-800

    1000x1000x800

    HD-E702-800

    1000x1000x1000

    HD-E702-1000

    Exterior dimensions
    (WxDxH)mm:

    1400x850x1050

    1500x950x1050

    1650x950x1150


    1750x1050x1350

    1900x1450x1350

    1900x1450x1550

    Site Requirements

    Electrical Supply:

    208V 3Ø 60Hz or 230V 3Ø 60Hz (customer specific)

    Humidity Water

    Distilled water

    Condensate Drain:

    1/2" hose connection (gravity drain)


    3. Performance of Temperature and Humidity Controlled Test Machine:


    Get a performance evaluation to help provide the suitable chambers to you.


    For better assurance of performance for your temperature and humidity cycling application, Haida can provide a guaranteed performance calculation based on your submitted requirements.


    Please use these questions as below as a guide to define your test plan. You can then give this information to our lab consultant or email to us, for review by our lab consultant. A recommended model with appropriate refrigeration size will provide to you.


    Questions for Performance Evolution Request:


    System & Performance Options

    • Low and Ultra-Low Humidity Extends the humidity control range. (Normal Humidity Range Diagramed)
    • Water-cooling system.
    • Dry Air Purge keeps moisture in the chamber extremely low by purging with -40 °C. Compressed air supply required
    • Additional shelves, 50 Kg loading
    • Cable ports with flexible silicone plug, 50 , 100, 150mm or customer specific diameters

    4. Programmable Constant Humidity and Temperature Control Test Machine view:



    (Innovative high-speed airflow suited for fast temperature cycling applications)

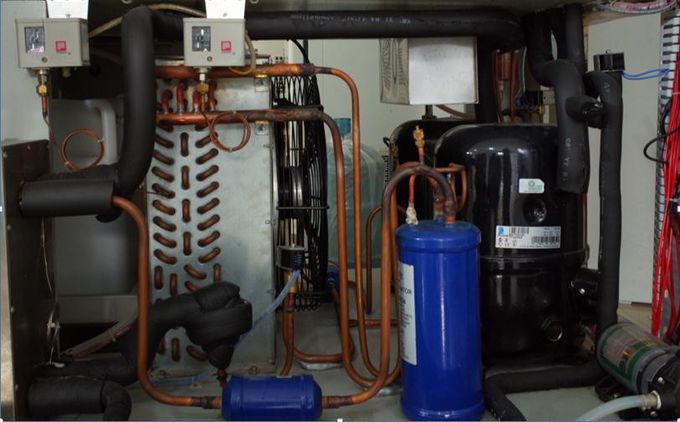

    (Advanced refrigeration design is especially compact for HD-Series Chambers)


    After-service:

    If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.



    FAQ

    Why choose us?

    1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.

    2.Excellent After sale Service:
    18 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.

    3.Commitment:
    We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

    4.Good Packaging:

    Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
