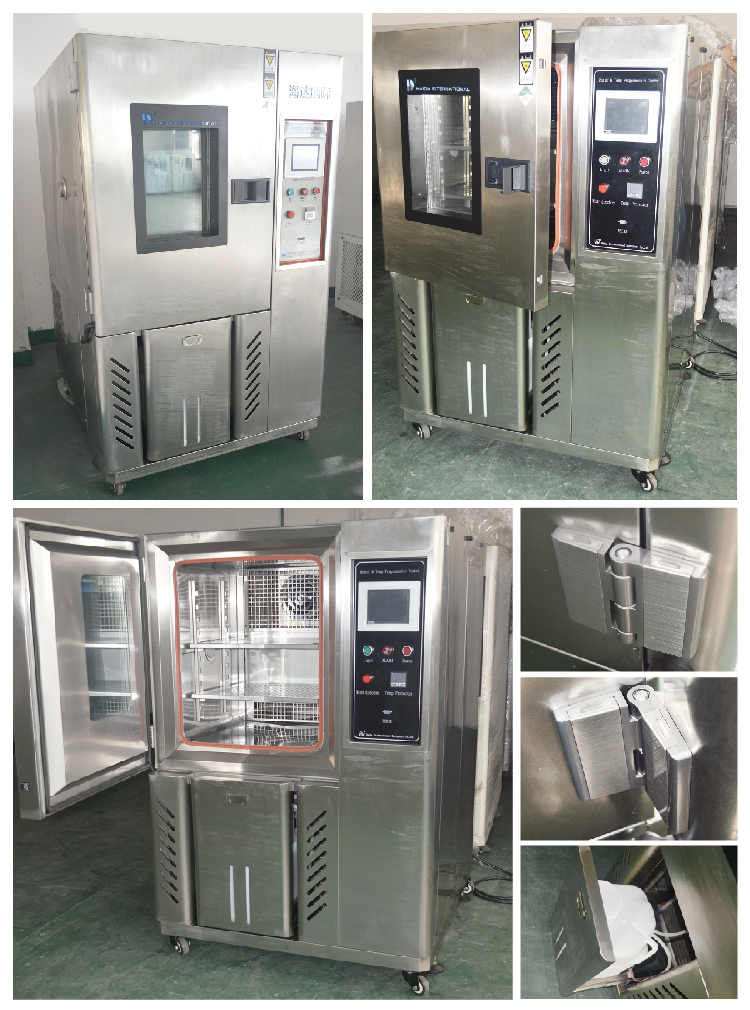

Environmental Climatic Simulation Test Chamber With PC Control For
Sale
HD-E702-408-7 Climate
Chamber.pdf
Product Description:
Environmental Test Chamber is for testing material heat, cold, dry resistance, humidity
resistance.Suitable for electronics, electrical
appliances,Communications, instrumentation, vehicles, plastic
products, metal, food, chemical,building materials, medical,
aerospaceand other products.
STANDARD FEATURES
| Model | HD-E702 |
| Internal dimension (W*D*H) | 600*800*850mm |
| External dimension (W*D*H) | 1100*1370*1750mm |
| Temperature range | -40~+150℃ |
| Temperature fluctuation | ±0.5℃ |
| Temperature uniformity | 2℃ |
| Humidity range | 20~98%RH (Refer Image below) |
| Humidity fluctuation | ±2.5%RH |
| Humidity uniformity | 3%RH |
| Cooling speed | 1℃/min in average (without loading) |
| Heating speed | 3℃/min in average (without loading) |
| Internal chamber material | SUS#304 stainless steel, mirror finished |
| External chamber material | Stainless steel |
| Cooling method | Air cooling |
| Controller | LCD touch screen, programmable control temperature and humidity Can set different parameter for cyclic test |
| Insulation material | 50mm high density rigid Polyurethane foam |
| Heater | Explosion-proof type SUS#304 stainless steel fins radiator pipe
heater |
| Compressor | France Tecumseh compressor |
| Lighting | Heat resistance |
| Temperature sensor | PT-100 dry and wet bulb sensor |
| Observation window | Tempered glass |
| Testing hole | Diameter 50mm, for cable routing |
| Sample tray | SUS#304 stainless steel, 2pcs |
| Safety protection device | Protection for leakage Over-temperature Compressor overvoltage and overload Heater short circuit Water shortage |
APPLICATIONS
1. To simulate test environment with different temperature and
humidity
2. Cyclic test includes climatic conditions: holding test,
cooling-off test, heating-up test, moistening test and drying test…
3. Cable port with flexible silicone plug for cable routing to
provide the condition of test unit under operation
4. Uncover test unit weakness in a short-term test with accelerated
time effect
CHAMBER DESIGN FEATURES
1. High performance and quiet operation (68 dBA)
2. Space-saving designed for flush installation to wall
3. Full thermal break around doorframe
4. One 50mm diameter cable port o left, with flexible silicone plug
5. Accurate wet/dry-bulb humidity measurement system for easy
maintain
Our Services
If you face any problems in future during testing process we
promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We
can provide video-conference. If customers require on-site service,
the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract,
which will improve your confidence to us.
5,Good Packaging:
Good Packaging: Simulation Animatronic Customer Triceratops are
covered with air bubble film before put them into the wooden case,
which not only has good shock absorption, impact resistance, heat
sealing and also has the advantages of nontoxic, odorless, moisture
corrosion, good transparency etc.
FAQ
Why choose us?
1. Considerate Service Different countries plugs, manually change
the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem
controller freely, even it's not from our factory. What you need to do is to send us the
controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract,
which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air
bubble film before put them into the wooden case, which not only has good shock
absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,
moisture corrosion, good transparency etc.
