    Xenon Accelerated Aging Test Chamber Air-cooled Control System

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E711
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

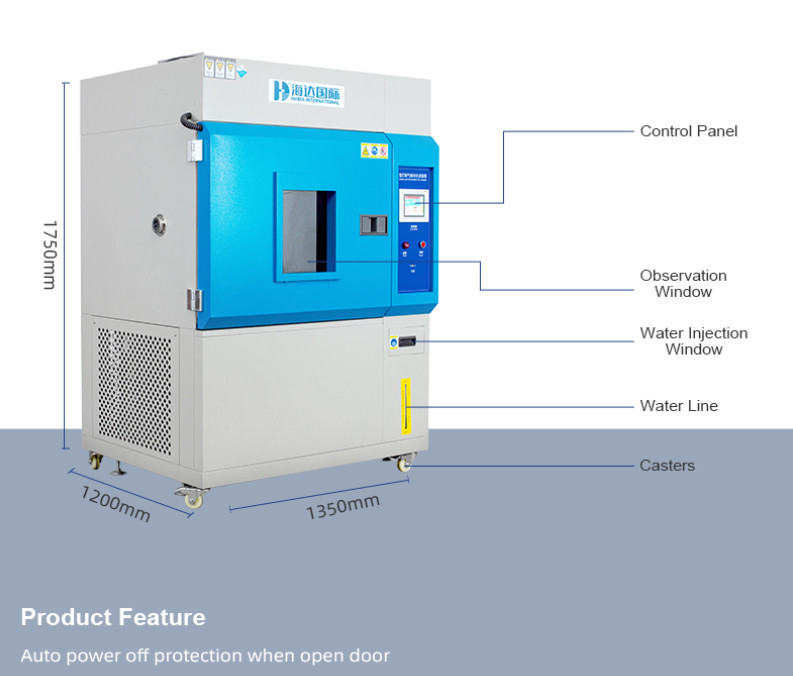

    Xenon Accelerated Aging Test Chamber Air-cooled Control System

    Xenon Accelerated Aging Test Chamber Air-cooled Control System


    Xenon Aging Test Chamber - Air cooled.pdf


    Product Description:


    Xenon aging test chamber can simulate the full sunlight spectrum of xenon arc lamp to reproduce the destructive light waves in different environments, to provide the appropriate environmental simulation and accelerated test for scientific research, product development and quality control.


    Main Parameter:


    ItemSpecification
    Internal Dimension (W*D*H)700*500*600mm
    External Dimension (W*D*H)1350*1300*1850mm
    Internal chamber materialSUS 304 # Stainless Steel, anti-rust
    External chamber materialCold-rolled steel with spray
    Chamber humidity range55%~90% RH
    Chamber temperature35℃~90℃
    Black panel temperature45℃~95℃, adjustable
    Temperature uniformity≤±3℃
    FilterWindow glass filter / daylight filter
    Light sourceAir cooled long arc xenon lamp
    Xenon lamp power1.8KW * 3pcs = 5.4KW
    Irradiance strength0.51W/m2@340nm
    Control system

    LCD programmable controller,

    Auto display irradiance, capacity: 100 groups program, 99 cycles.

    Illumination time1~999 hours, adjustable
    Water spray system

    Water spray time 999 minutes settable

    Interval spray time, 1~240 minutes settable

    Sample holderStainless steel, 1pc

    Distance from sample

    holder to lamp

    250~300mm
    HeatingNickel-chromium alloy electric heater
    Humidification powerStainless steel surface evaporative humidifier
    Insulation materialsSupper fine glass fiber
    Temperature sensorPT100 high precision sensor
    Air circulation systemStainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
    Standard accessories

    Xenon lamp x 3pcs;

    Humidification cotton x 5pcs;

    English user manual x 1pc;

    Operation video x 1pc


    Xenon Aging Test Chamber Features:

    1, using full-spectrum xenon lamp LED;

    2, a variety of alternative filtration system;

    3, rain shower function;

    4, relative humidity control.

    5, chamber air temperature control system;

    6, irregular shape of the sample holder;

    Xenon Accelerated Aging Test Chamber Air-cooled Control System
