    Rapid-rate Thermal Shock Cycle Test Chamber With Digital Display

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E703
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Rapid-rate Thermal Shock Cycle Test Chamber With Digital Display

    Rapid-rate Thermal Shock Cycle Test Chamber With Digital Display

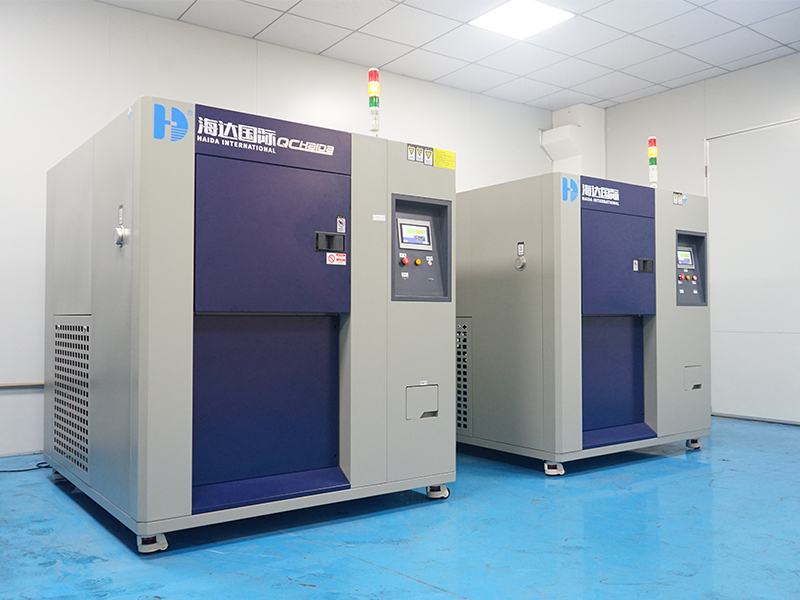

    Three Zone Thermal Shock Test Chamber

    Product Description:
    Thermal Shock Cycle Test Chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, which is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm.

    Main Parameters:

    Test methodPneumatic operated door switch 3 chambers
    Inner dimension (W*D*H)500*450*450mm
    External dimension (W*D*H)1380*1370*1980mm
    Temperature range-40 ~ +80℃
    High temperature chamber pre-heating range60 ~ 100℃
    Heating speed+60→+100℃ about 10 minutes
    Low temperature chamber pre-cooling range-65 ~ 0
    Cooling speedAmbient →-65℃ about 65 minutes
    Temperature deviation±3℃
    Thermal recovery timeWithin 5 minutes
    External materialAntirust processing cold-rolled steel sheet
    Internal materialSUS#304 stainless steel
    Thermal insulation materialPolyurethane foam and fiberglass
    CoolantR404A / R23
    Cooling methodAir cooling
    Pressure0.2 - 0.5Mpa
    Power supplyThree phase, 380V, 50Hz


    Features:
    1. Perfect appearance and easy to operate.
    2. Japan LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.
    3. Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.
    4. Perfect protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…
    5. Control interface will display alarm reason and provide check methods, machine has emergency stop button.
    6. Cold and hot shock temperature recover within 5 minutes, which complies with MTL, IEC, JIS, GJB and other international standards.
    7. With RS-232C communication port for connecting PC to control, record and save test report.

    High Temperature Chamber:
    Heater: NI-CR alloy electric heater
    Draught fan: Share centrifugal fan when high temperature and do environmental temperature, preheating with axial flow fan.

    Low Temperature Chamber:
    Cooler: Fin cooler, regenerator
    Draught fan: centrifugal fan
