    Programmable Universal Tensile Test Machine for Rubber And Plastic Test

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-B604B-S
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Programmable Universal Tensile Test Machine for Rubber And Plastic Test

    Programmable Universal Tensile Test Machine for Rubber And Plastic Test


    HD-B604B-S Universal Test Machine.pdf


    tensile test machine


    Product Description:


    Universal Tensile Test Machine can be test all the material in tensile, compression, bending, shear, peel, tear,two-point extended (need add extensometer) and others for control products quality. Such as textile, rubber, plastics, synthetic leather, tape, adhesive, plastic film, composite materials, electronics, metals and other materials.


    Standard Features


    ItemDescription
    Frame capacity2000kg
    Load cell brand

    Germany brand load cell for high accuracy,

    2000kg (500,1000kg are optional)

    Load accuracy0.5% F.S
    Control systemPC with windows 7 system
    MotorPanasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod
    Force readingkgf, Ibf, N, KN, T etc
    Vertical test space1200mm including fixture
    Horizontal test space≤400mm
    Test speed0.1~500mm/min (adjustable)
    SoftwareTM 2101
    Curves displayLoad- elongation, Elongation-time, Time-elongation, Stress-strain
    Data displayMax. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc…

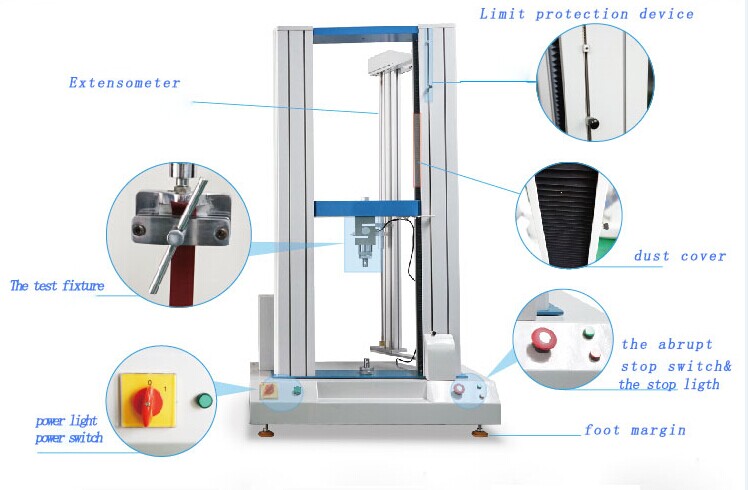

    Safety features

    E-Stop

    Over-load protection

    Upper and lower limit switches

    Load sensor with automatic retreat

    Applications:

    1. Tested sample: laminated materials, wood, leather, rubber & plastic, metal material, etc.
    2. Different test with different grips: tensile, peel, tear, heat seal, adhesive, bend and open force.
    3. Deformation under defined load: Test deformation under defined load of tested sample
    4. Load under defined deformation: Test load under defined deformation of tested sample
    5. Software can issue word/excel report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

    tensile test machine

    tensile test machine


    After-service:

    If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
