    Battery-packaged compression test machine

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-A501-900
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

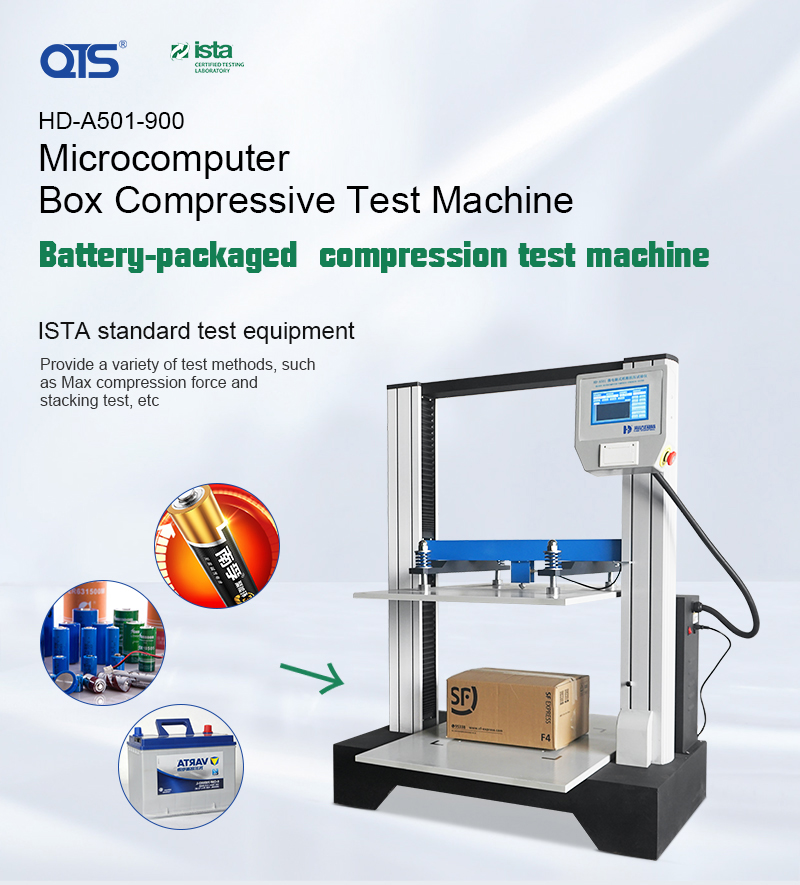

    Battery-packaged compression test machine

    Battery-Packaged Compression Test Machine


    Product Description:

    Battery-packaged compression test machine electronic test and measurement instrument is applicable in testing the compression endurance and stacking strength and press standard of corrugated carton.


    Specifications:

    ModelHD-A501-900
    Unit (switchable)Kg, Lb, N
    Capacity (optional)2T
    Load Resolution1/100,000
    Stroke (exclude the grips)400 mm
    Load Accuracy≤0.5%
    Test Space (LxWxH)90700x900x900mm
    Speed of Compression10 ± 3 mm/min
    Operation ModePC
    Report ItemsSerial number, Peak value, Average value, Designated holding pressure value; all memorable
    StructureAC Frequency Conversion Motor ( Taiwan);
    Imported screw rod ;4 sensors; LED display
    Dimension (L×W×H)2370×1500×2100mm (can be custom made)
    Power1ø, 220v/ 50Hz
    WeightApprox. 850kg
    Safety DevicesOverload protection, overvoltage protection & limited position protection device
    StandardTAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642

    The table parameters for the company Standard Model parameters, we support customer customization parameters


    Design Criteria:

    TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO 12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4


    Features:

    Battery-packaged Compression Test Equipment

    Using a single-screen operation; do not need to switch the screen;
    With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;

    Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
    The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
    Choosing translational, comparative mode at the same time to make a number of curve data comparison;
    With a variety of measurement units, Measure In Imperial & Metric are switchable;
    With self-return & auto-correction function;
    With automatic magnification function, in order to achieve the most appropriate size of the graphics;
    With the user-defined Test methods; with experimental data analysis function;
    It can do test of compression, bending, pressure holding & fatigue.

    With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.


    Note:

    Factory direct sale

    The factory has stock

    Limited numbers are available on a first-come, first-served basis
