    Paper Board Burst Strength Tester ISTA Packaging Testing Equipment

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-A504-B
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

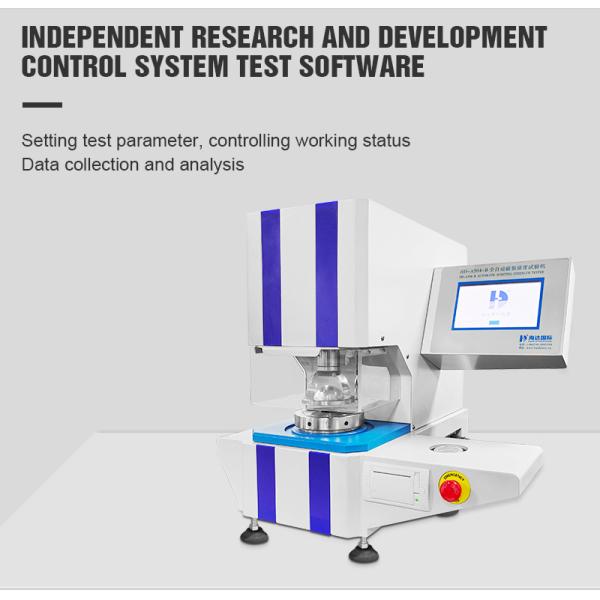

    Paper Board Burst Strength Tester ISTA Packaging Testing Equipment

    Paper Board Burst Strength Tester ISTA Packaging Testing Equipment


    Haida Burst Strength Tester.pdf

    Product Description:

    Bursting strength tester is used to test the bursting strength of all kinds of paper, such as packaging materials, including plain paper, corrugated paper, toilet paper, packaging, tape, leather, packaging films, fabrics, etc. Adopt advanced microcomputer controller and digital processor, to ensure result precision. With thermal printer, to save and print out test data. Safty protection device, to ensure overload power off. It is based on the international Mullen method.

    The Parameters:

    Capacity (Optional)High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
    UnitKpa, psi, kg/cm^2
    Accuracy± 0.5%
    Pressure Range250~5600kpa
    Speed of CompressionHigh Pressure 170± 10ml/min
    Specimen Clamping Force>690kpa
    Oil100% silicon oil
    Sensing methodPressure Transmitter
    Indicating MethodDigital
    DisplayLCD
    Material of the RingStainless Steel SUS304
    Opening in Upper Clamp31.5 ± 0.05 mm Diameter
    Opening in Lower Clamp31.5 ± 0.05 mm Diameter
    Motor

    Anti-vibration Motor 1/8 HP

    Operation Method

    Automatic

    Dimension (L×W×H)

    445×425×525 mm

    Weight

    Approx. 70 kg

    PowerApprox. 70 kg
    Optional ConfigurationPrinter, Air Pump


    Advantages:
    Burst strength tester can print the max. min. and average value, burst index, coefficient of variation, the amount of test groups.
