    Office Chair Caster Durability Tester Lab Furniture Test Machines with Single Phase 900W

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-F732
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Office Chair Caster Durability Tester Lab Furniture Test Machines with Single Phase 900W

    Office Chair Caster Durability Tester Lab Furniture Test Machines With Single Phase 900W


    Product Description

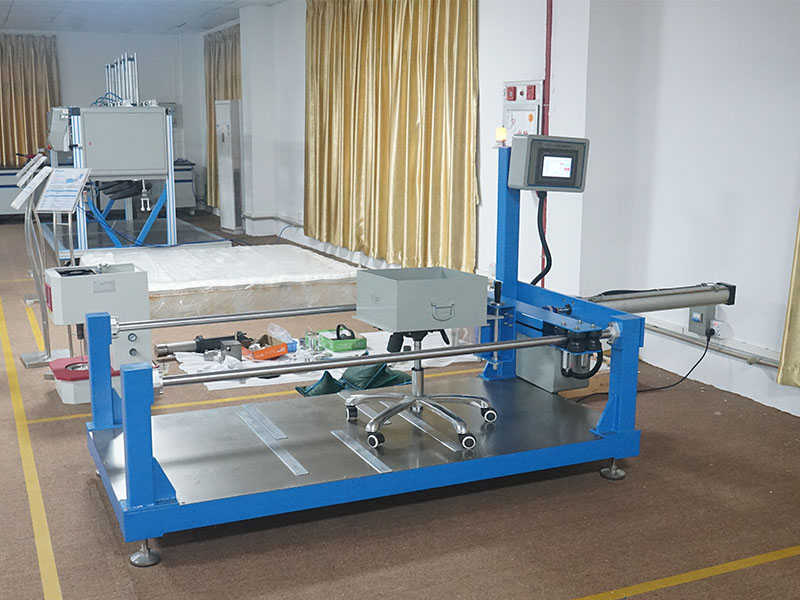

    Chair Caster Durability Tester can evaluate the ability of chair base and casters to withstand fatigue stresses and wear caused by moving the chair back and forth. Seat surface to place the weight (113 kg), the holding fixture driven by motor and timing belt move to and fro, in order to assess the the casters of wear life, stroke rate and the number of times can be set.

    chair test machine

    Main Technical Parameters

    driving modevariable frequency motor and timing belt
    Stroke762mm (+ 50mm)
    rate8 ~ 12 times / min
    holder with the up and down adjustment range80mm~500mm
    control modePLC and LCD display
    Voltage220V single-phase, 900W
    Design standardBifma x 5.1 clause 17

    1. Starting point for self-regulation.

    2. Accessories: a weight of 23 kg of load-bearing base divided into 9 equal portions per box, placed a 10-kilogram weight, the overall weight equal to 113 kilograms.

    3. Base barriers block can be removed, for smoothing the surface accessibility block test.



    Specifications

    1.Chair Caster Durability Tester is used to evaluate the quality and wear life of the caster in chair.
    2.OEM
    Bifma × 5.1-2011 Section 17, X5.5 Section 18, X5.9 Section 11

    Effective stroke 900 mm

    Standard loading pad, loading tray * 1, weight: 113kg

    Test speed: 10 CPM
