    Foam Roller Shear Tester Furniture Testing Machine Touch Screen Controller

    Ask Lasest Price
    Brand Name : haida
    Model Number : HD-F750
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Foam Roller Shear Tester Furniture Testing Machine Touch Screen Controller

    Foam Roller Shear Tester Furniture Testing Machine Touch Screen Controller


    Products description:


    Foam Roller Shear Test Machine is used to determine the resistance to compression fatigue of flexible cellular polyurethane using dynamic roller compression test. The Roller Shear Machine fatigues a specimen dynamically with a constant force deflecting the material both vertically and laterally. It has been used for many years in the foam industry to determine the percentage loss in thickness.


    Specification:


    Sample size380*300*50mm
    Roller loading130N±2N (adjustable)
    Counter0-999,999 cycles
    Test cyclesProcedure A: 8000 cycles; Procedure B: 20000 cycles
    Roller sizeDiameter 76±1.3mm, Length: 457mm
    Test speed15±1.5 cycles/ min
    Rolling stroke300±10 mm
    Base Platen500mm x 500mm
    Control methodPLC, touch screen controller, can set force and test cycles
    Power1 phase, AC 220V, 50±10% Hz

    Test standard:


    ASTM D1564 • AS 2282.12 Clause 3.3, Method B • ASTM D3574 • JIS K 6400

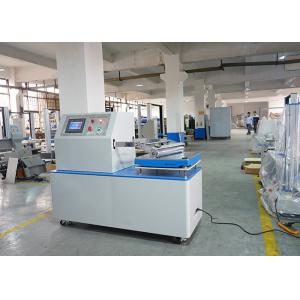

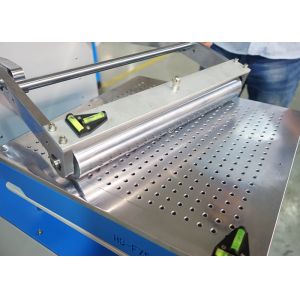

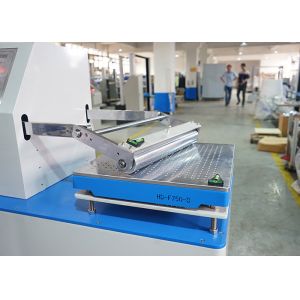

    Foam Roller Shear Test Machine


    Foam Roller Shear Test MachineFoam Roller Shear Test Machine
