Brand Name : | haida |
Model Number : | HD-A502S-1200 |
Certification : | ISO |
Price : | Negotiable |
Payment Terms : | L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow |
Supply Ability : | 300 Sets per Month |
Delivery Time : | 20 days after order confirmed |

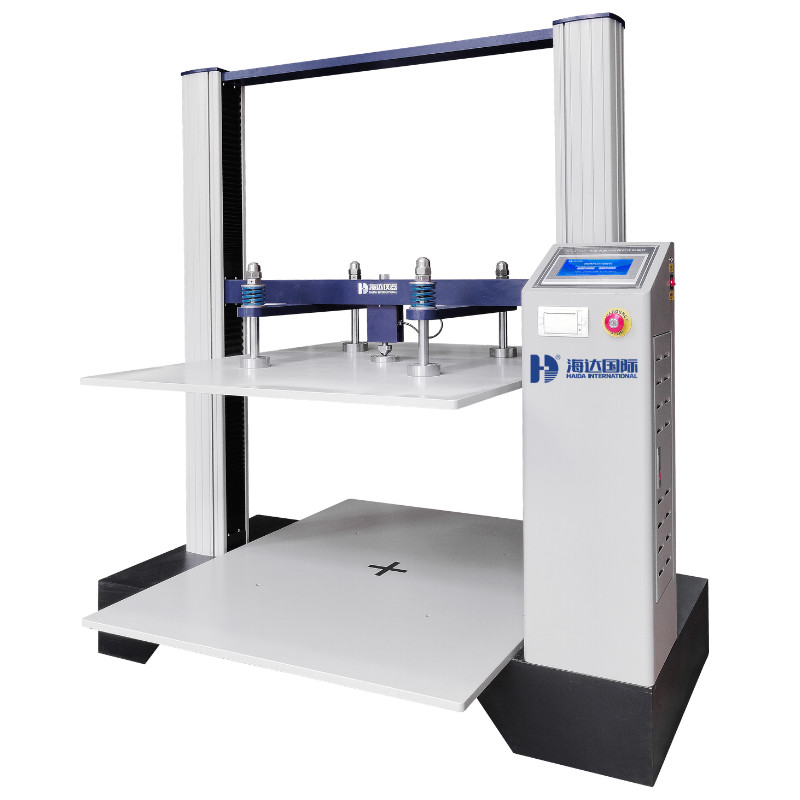

A502 Box
Compression Tester.pdf
Introduction:
Carton compression testing machine is suitable for electronics, electrical appliances, electrical
wires, hardware, bicycles, handbags, food, medicine, shoes,
furniture, etc. that are packed in corrugated boxes. It is suitable
for packaging of corrugated boxes, honeycomb board boxes, etc.
Pressure resistance, deformation, stacking test. It also takes into
account the compression tests of containers such as plastic drums
(edible oil, mineral water), paper drums, cartons, paper cans, and
container drums (IBC drums).
Specifications:
Model | HD-A502s-1200 |
Unit (switchable) | Kg, Lb, N |
Capacity (optional) | 2T |
Load Resolution | 1/100,000 |
Stroke (exclude the grips) | 400 mm |
Load Accuracy | ≤0.5% |
Test Space (LxWxH) | 1200×1200×1200mm |
Speed of Compression | 10 ± 3 mm/min |
Operation Mode | PC |
Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
Structure | AC Frequency Conversion Motor ( Taiwan); Ordinary screw rod |
Dimension (L×W×H) | 2000×1200×2030mm (can be custom made) |
Power | 1ø, 220v/ 50Hz |
Weight | Approx. 750kg |
Safety Devices | Overload protection, overvoltage protection & limited position protection device |
Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
Features
Using a single-screen operation; do not need to switch the screen;
With three languages in Simplified Chinese, Traditional Chinese and
English, the software interface can be switched easily;
Adopting windows platform, and all the parameter settings can be
processed in the dialog box, and it operates easily;
The pattern of Test reports can be self-designated; test data can
be displayed directly in the main screen;
Choosing translational, comparative mode at the same time to make a
number of curve data comparison;
With a variety of measurement units, Measure In Imperial & Metric
are switchable;
With self-return & auto-correction function;
With automatic magnification function, in order to achieve the most
appropriate size of the graphics;
With the user-defined Test methods; with experimental data analysis
function;
It can do test of compression, bending, pressure holding & fatigue.
With high precision and accuracy and reasonable price, it can test
the crush instantaneously and stop automatically.
Design Criteria:
TAPPI-T804,JIS-20212,GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO
12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3,GB/T4857.4
