    Temperature Cycling Humidity Test Chambers Programmable environmental testing equipment

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E702
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Temperature Cycling Humidity Test Chambers Programmable environmental testing equipment

    Temperature Cycling Humidity Test Chambers Price With Programmable


    HD-E702-100-7 Climate Chamber.pdf


    Introduction:

    Temperature Cycling Humidity Test Chambers from Haida provide the temperature cycling and humidity performance you need to validate quality and reliability for increasingly sophisticated electronics and other products.


    Standard Features


    ModelHD-E702-100-7
    Internal dimension (W*D*H)400*500*500mm
    External dimension (W*D*H)600*1280*1380mm
    Temperature range-70~+150℃
    Temperature fluctuation±0.5℃
    Temperature uniformity2℃
    Humidity range20~98%RH (Refer Image below)
    Humidity fluctuation±2.5%RH
    Humidity uniformity3%RH
    Cooling speed1℃/min in average (without loading)
    Heating speed3℃/min in average (without loading)
    Internal chamber materialSUS#304 stainless steel, mirror finished
    External chamber materialStainless steel
    Cooling methodAir cooling
    Controller

    LCD touch screen, programmable control temperature and humidity

    Can set different parameter for cyclic test

    Insulation material50mm high density rigid Polyurethane foam
    HeaterExplosion-proof type SUS#304 stainless steel fins radiator pipe heater
    CompressorFrance Tecumseh compressor x 2sets
    LightingHeat resistance
    Temperature sensorPT-100 dry and wet bulb sensor
    Observation windowTempered glass
    Testing holeDiameter 50mm, for cable routing
    Sample traySUS#304 stainless steel, 2pcs
    Safety protection device

    Protection for leakage

    Over-temperature

    Compressor overvoltage and overload

    Heater short circuit

    Water shortage


    Applications

    1. To simulate test environment with different temperature and humidity

    2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

    3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

    4. Uncover test unit weakness in a short-term test with accelerated time effect


    Performance:


    Temperature Cycling Humidity Test Chambers has twenty different models to allow you to choose the size and performance best suited for your test applications. Temperature cycling rates from 5 to 20°C/min. are possible.


    Two different ultimate low temperatures are avail- able: -40°C or -70°C.


    Temperature Cycling Test Chamber also control humidity, for expanded testing options beyond temperature cycling.


    Temperature Cycling Test Chambers are capable of meeting the performance requirements of ASTM, IEC, GB, and other international environmental test performance standards.


    Programmable Controller

    1. PLC controller for test chamber

    2. Step types include: ramp, soak, jump, auto-start, and end

    3. RS-232 interface to connect computer for output


    Humidity Range

    temperature cycling chamber humidity range


    PLC Operation


    temperature cycling test chamber controller

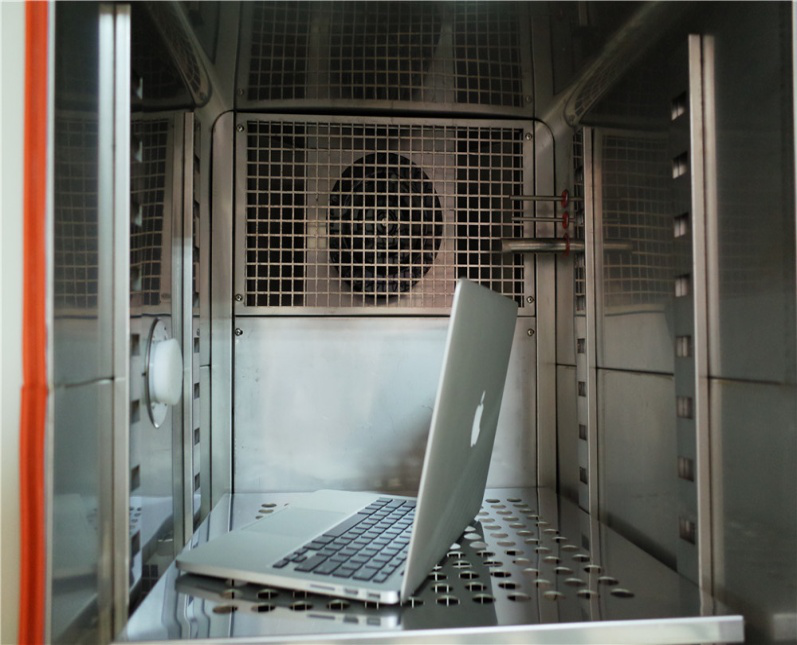

    Internal Chamber


    temperature cycling test chamber inner chamber
