Light UV Chamber Nichrome Heating System Environmental Accelerated
Aging Chamber
Function:
Meet Specifications
* Meet customer requirements
* Stay ahead of government regulations
Prevent Field Failures
* Improve quality and durability
* Enhance reputation
* Assure product performance
Gain a Competitive Edge
* Save on material costs
* Expand product lines
* Enter new markets
* Outrun the competition
How it Works
Uses:
Light UV chamber nichrome heating system Environmental Accelerated
Aging Chamber Widely used in paint,coating,plastic &rubber
material,printing
&packing,adhesive,car&motorcycle,cosmetic,metal,electron,electroplate
industry,etc.
Standard:
Common standard:ISO 4892-1 ,ASTM G151 ,ASTM G154 ,JISD0205, SAEJ2020
Paint Standard: ASTM D3794 ,ASTM D4587 ,FED-STD-141B ,GM 9125P ,
JIS K 5600-7-8 ,ISO 11507 ISO 20340 ,M598-1990 , NACE TM-01-84
,NISSAN M0007 ,PrEN 927-6
Adhesive glue Standard:
ASTM C1184 ,ASTM C1442 ,ASTM D904 ,ASTM D5215 ,UNE 104-281-88
Plastic Standard:
ISO4892-3 ,ANSIC57.12.28 ,ANSI,A14.5 ,ASTMD4329 ,ASTMD4674
,ASTMD5208 ,ASTMD6662 ,DIN 53384 ,JUI K 3750, UNE35.104
Roofing materials standards:
ANSI/RMAIPR-1-1990 ,ASTM D4799 ,ASTM D4811 ,ASTM D3105 ,ASTM D4434
,BS D5019 BS 903: PartA54 ,CGSB-37.54-M, DIN EN534
Printing,Ink material standards:
ASTM D3424 ,ASTMF1945
Fabrics Standards:
AATCC TM 186 ,ACFFA Guideline
Characteristic:
1. Accelerated Weathering Tester chamber box use numerical control
machine processes to shape,the appearance is attractive and
beautiful,case cover is bothway flip-cover type, operation is easy.
2.Chamber inside and outside material is imported super #SUS
stainless steel,increasing the chamber appearance texture and
cleanliness.
3.Heating way is inner tank water channel to heat,heating is
quickly and the temperature distribution is uniform.
4.Drainage system uses vortex-flow type and U type sediment device
to drainage which is easy to clean.
5.QUV design fit with user-friendly,easy operation, safe and
reliable.
6.Adjustable specimen setting up thickness,easy installing.
7. The upward rotating door do not hinder user operation.
8.Unique condensation device only needs tap water to meet demands.
9.Water heater is under of container,longtime life and convenient
maintainance.
10.Water level is controlled out of QUV,easy monitoring.
11.Wheel makes moving easy.
12.Computer programming easy and convenient.
13.Irradation calibrator extends longtime life.
14.English and chinese manual.
Technical parameters:
| Item | UV Lamp Tester Accelerated Aging Test Chamber for Non-metallic
Materials |
| Working chamber size(CM) | 45×117×50 |
| Outside size(CM) | 70×135×145 |
| Rate of power | 4.0(KW) |
| Tube number | UV Lamp 8, each side 4 |
Performance
index | Temperature Range | RT+10℃~70℃ |
| Humidity Range | ≥95%R.H |
| Tube Distance | 35mm |
| Distance between sample and tube | 50mm |
| Supporting sample plate quantity | Length 150mm×Width75mm,About 48 pcs |
| Ultraviolet wavelength | 290nm~400nm UV-A340 |
| Tube rate of power | 40W |
| Control system | Controller | Korea TEMI 880 |
| Illumination heating system | All autonomous system, nichrome heating. |
| Condensation Humidity System | Stainless steel surface evaporative humidifier |
| Blackboard temperature | Thermometal blackboard thermometer |

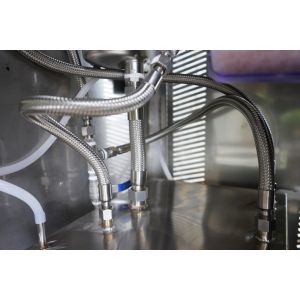

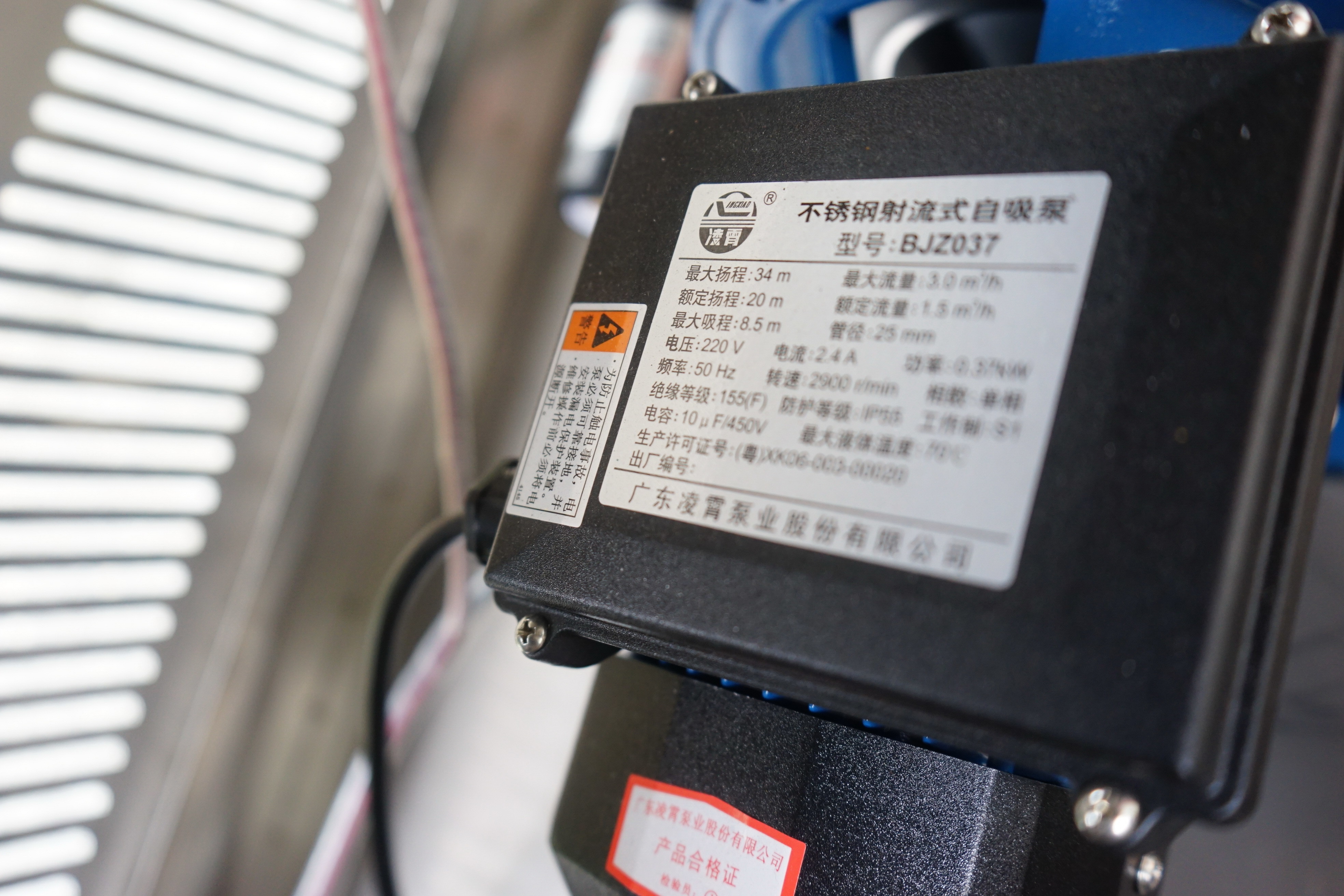

| water supply system | Humidification water supply uses automatic controlling |
| Exposure Way | Moisture condensation exposure and illumination radiation exposure |
| Safety protection | leakage,short circuit,over-temperature,hydropenia,overcurrent
protection |
TEMI 880 Controller
Programmable LCD controller, can do cyclic test with temp, humid,
water spray and condensation.
UV lamps
UV-A and UV-B lamps for option
Sample Holder
Test specimens are mounted on both the front and back side of the
UV Tester, providing a large sample
capacity.
Sample holder can be customized.
