    Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E801
    Certification : ISO9001: 2008, CE
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber

    Air Ventilation Ozone Aging Test Chamber Environmental Accelerated Aging Chamber


    STANDARD FEATURES


    ModelHD-E801
    Internal dimension (WxDxH)500*600*500mm
    External dimension (WxDxH)1000*1000*1750mm
    Temperature rangeRT+10~ 60℃ (suggest to use 40℃±2℃)
    Temperature Fluctuation±1℃
    Ozone concentration50~1000 pphm, adjustable
    Ozone concentration deviation±10%
    Sample holderSUS#304 stainless steel
    Temperature controllerProgrammable touch screen controller
    Ozone concentration analysisConcentration analysis meter
    Ozone generatorHigh pressure silence discharge type
    Protection systemLeakage, short circuit, over temperature, over heat
    Test criteriaASTM D1149, ISO 1431, JIS K6259...

    CHAMBER STRUCTURE AND FEATURES


    1, Internal material adopts high quality mirror stainless steel for ozone resistance.

    2, Insulation material: high-density glass fiber

    3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.

    4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.

    5, Chamber bottom has high quality caster for convenient move.

    6, Observation window uses multilayer hollow tempered glass.

    7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

    8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.


    STANDARD CONFIGURATION


    1, Power line x 1pc

    2, Sample holder x 1set

    3, Fuse x 1set

    4, Operation manual x 1set

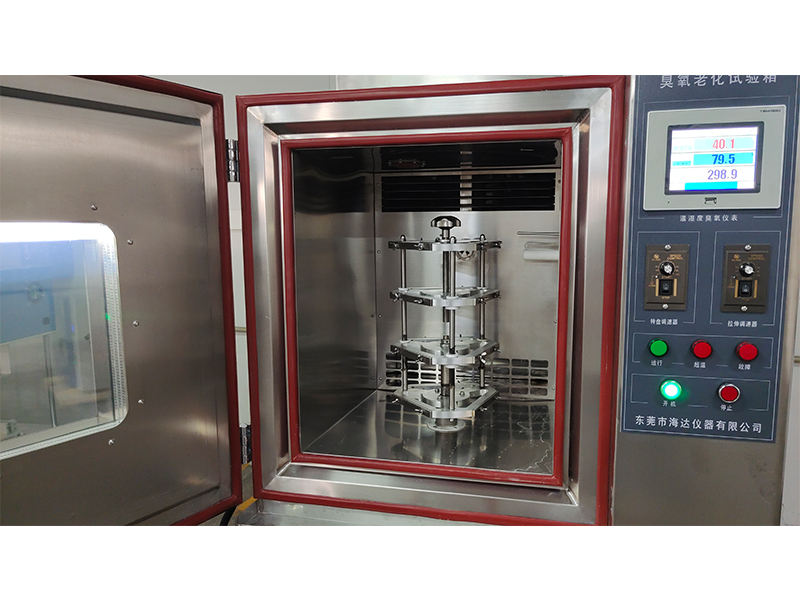

    TURNTABLE SAMPLE HOLDER WITH TENSILE FIXTURE
