    High immunity Detector DSP Automation Industrial Metal Detectors

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-W801
    Certification : ISO9001: 2008, CE, ...
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 15 days after order confirmed
    • Product Details
    • Company Profile

    High immunity Detector DSP Automation Industrial Metal Detectors

    High immunity Detector DSP Automation Needle Detector Machine


    1.Description:

    High immunity Detector DSP Automation Needle Detector Machine detection of thick material and thin material, display of the positions of broken needles and scrap iron in an object being detected for facilitating the finding of the broken needles of operators, automatic return of object to be detected, automatic start-up, once switch startingfir each working stage, a power utilization system capable of stopping the machine five minutes after no-load operation, power and money conservation, power utilization safety protection, great popularity among customers.


    2.Applicable Industries:

    High immunity Detector DSP Automation Needle Detector Machine is used to garment, textile, bra, baby product, shoes, socks, gloves and soon, for detecting impurities such as needle points, pins and scrap iron in products, preventing metal pollution of the products and guaranteeing product quality.


    3.Technical Parameters:

    Detection width400mm
    Detection height100mm150mm200mm240mm280mm320mm
    Detection sensitivity Fe (iron)FeΦ1.0mmFeΦ1.2mmFeΦ1.5mmFeΦ2.0mmFeΦ2.5mmFeΦ3.0mm
    speed25m/min
    Power supplyAC220V±10% 50Hz
    Power60w
    Weight120KG
    Dimensions l*w*h (mm)1250*800*850mm



    Features:
    1,Neuest design with luxury modern looking streamline ABS cover.
    2,Broken readle location indicater (8 sector).
    3,Appear the passing sum.
    4,Including extra-thick and exera-thin inspection function.
    5,Belt correct device.
    6,Automatically startup function.
    7,EP design of autematically stop function after each 10 minutes empty rumming.
    8,Vision and sound warning,and automatcally run back function.


    Composition structure
    1, the detection sensor (probe)
    2, the circuit control system
    3, the electrical machine
    4. The conveyor belt
    5, the rack
    6, the wing housing
    7, drive shaft
    8. Optical Infrared emitters
    9, the fixed foot
    10, a control panel


    Operating procedures
    1) Check the machine probe, the conveyor belt, whether the debris, tools, etc., should be removed if the following between the probe and the surface of the conveyor belt below the window pallet.
    2) Detection
    3) the subject goods should not be too much, can not exceed the detection channel, if a collision detection probe may cause false alarms.
    4) If the machine detects the abnormal sound, should immediately stop inspection, troubleshooting and then tested.
    5) detection probe should remain very stable, does not allow the probe stack anything allowed by the probe as a rest support, press the "Run" button to start action should be light, to prevent false alarms due to vibration.
    6) the machine to vibration or power fluctuations, and occasionally there will be an alarm phenomenon is normal, not a fault.
    7) After each test should be promptly click the "Power" button and unplug it off.


    Needle machine maintenance
    1. Each test is completed, the conveyor belt response, probe maintenance on the machine removed the foreign body. Special attention probe window below the surface of any debris between the pallet and the conveyor belt is not allowed.
    2. Rinse detector is not allowed to remove the debris. To ensure the conveyor belt, the probe control box dry.
    3. When summer temperatures or a long time without much prior to use shall conveyor, pallet accumulation of moisture on the electrical box to dry before boot.
    4. Regularly check the machine transmission parts refueling, if loose fastening screws should be tightened.
    5. Motor Maintenance

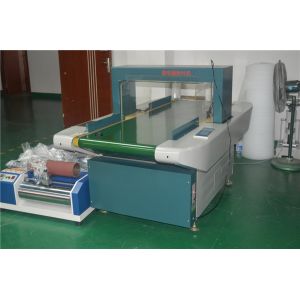

    The picture of metal detector:
    metal detector
    metal detector
