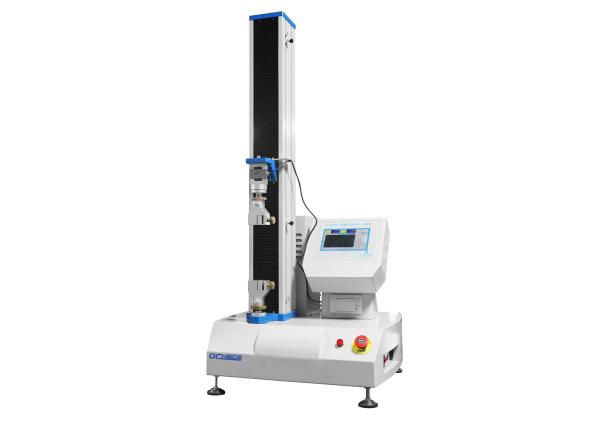

Compress Tester Load Cell Low Cycle Fatigue Test Tensile Strength Tester

Application

Compress tester load cell low cycle fatigue test Tensile Strength Tester are economic but high function level widely used for tension, compression, bending and shearing test of all kind of materials.

The Test Object

Compress tester load cell low cycle fatigue test Tensile Strength Tester mainly applied to test the metallic and non-metallic materials such as rubber, plastic, wire and cable, optical fiber cable, seat belts, seat belt, leather belt composite materials, plastic profiles, waterproof membrane, steel, copper, profiles, spring steel, bearing steel, stainless steel, castings, steel, steel, non-ferrous metal wire tension, compression, bending, shear, peel, tear, extending two other tests.

1.This machine adopts oil cylinder on bottom type structure, hydraulic load, hydraulic clamping specimen.
2. Oil Clearance sealing instead of O-ring sealing. Keep the cylinder loading stable and maintenance-free.
3. Manually hydraulic valves loading control, give the high efficiency of common test.
4. Load Capacity from 300KN to 2000KN.

Technical Parameters

Standard Accessories

Encoder installed, Load cell installed; Servo motor built in; Control card and display unit;Flat Tension Grip; Compression Plates; Installation tool and Cables.

Optional Accessories

Strain gauge type Extensometer, Large deformation Extensometer;Computer interface and software; Computer, Windows Operation System, Printer;

Test Theory

The sample was clamped between two clamps clamp, two clamps relative motion, by moving the folder is located in the head of the force of the sensor and the machine built-in displacement sensor, collected during the test force value change and displacement, to calculate the specimen tensile, tear, deformation rate and other performance indicators.

Machine Maintenance

Regularly check the jaw parts of screws, if found loose, tighten timely;

Sliding surface inlay plate and liner contact surface of the dovetail groove on the liner should be kept clean, regularly coated with a thin layer of MoS2 (molybdenum disulfide) grease;

Check the drive sprocket regularly and, if found loose, place the tensioner re-tensioning.
