    Environment Accelerated Aging Chamber Xenon Test Chamber With SUS304

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E711
    Certification : ISO9001: 2008, CE, ...
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Environment Accelerated Aging Chamber Xenon Test Chamber With SUS304

    Environment Accelerated Aging Chamber Xenon Test Chamber With SUS304



    Product Introduction


    Xenon Aging Chamber is analogue terrestrial solar radiation environment, widely used to determine the electrical, electronic products shell, leather and other light on the atmospheric environment adaptability; also be used to examine the effect of solar radiation on the ground equipment and components produced (thermal, mechanical, , chemical, electrical, etc.)


    Key Features


    Remarkably Simple User Interface
    AUTOCAL Calibration
    Full Spectrum Xenon Lamps
    Long-Life Optical Filters
    Programmable Water Spray
    SOLAR EYE Irradiance Control
    Precision Temperature Control
    Versatile Specimen Mounting
    Relative Humidity Control


    Auxiliary Structure


    Seal: double high-temperature high tensile seal between the door and the cabinet in order to ensure that the test area
    Door handle: no reaction door handle, easier to operate
    Moves the sample holder: Sample holder rely installation box at the bottom of the linear reciprocating drive system for moving up and down
    Casters: bottom of the machine can be fixed with high quality PU wheels


    Specifications


    ModelHD-711L Xenon Lamp Aging Chamber
    Inner Box Size (D×W×H)950×950×900mm
    Outside Dimension (D×W×H)1300×1500×1900mm
    Humiture Range(RT+10)~70°C; 30~98%RH
    Humiture uniformity± 2°C; ± 3%RH
    Rainfall time1~9999min, adjustable
    Rainfall cycle1~240min, interval is adjustable
    Xenon lamp lightxenon long-arc lamp, 6KW±10%, 290-800nm, 1000W/m2±200
    Heating/humidifying power2.0KW/2.0KW
    Sample spinning machine speed1~5r/ min (adjustable)
    Sample and xenon lamp distance300~375mm
    Box materialStainless Steel SUS304#
    Insulation materialsSuperfine heat insulation cotton
    Insulation bodySuperfine glass fabric
    Circulation systemSingle cycle, centrifugal fan
    Control systemGermany KLOCKNER-MOELLER progammable controler
    Gas processingdischager for fector and harmful gas
    PowerAC380V, three phase five wire, 10KW
    Use environment5°C~+30°C, ≤85%R.H
    Standard features1. Filtering screen viewing window; 2.Moistureproof lamp
    Security ProtectionSecurity device for circuit break,
    high pressure of the compressure, high temperature alarm


    Simple to Maintain

    We believe that just because a product is technical, it doesn’t have to be hard to understand or difficult to maintain and repair. Instead of complicating our tester designs by loading them with extra or unnecessary features, we put our engineering effort into keeping things simple. Subsystems are modular, easy to troubleshoot and even easier to replace.


    Operation

    Xenon lamps Accelerated Aging Chamber are extremely simple to operate. Specimen mounting and evaluations are simplified with specially designed specimen holders. Programming is intuitive. All models are completely automated and can operate continuously, 24 hours per day, 7 days per week.


    Simple to Afford

    Xenon lamps Accelerated Aging Chamber were specifically designed to have the lowest total cost of ownership in the industry. Their low purchase price, low lamp price, and low operating costs set a new standard for lightfastness testing. Now even the smallest lab can afford xenon arc weathering and lightstability testing.

    Xenon Lamp Aging Chamber Maintenance


    1, any time to maintain a neat appearance;
    2. Do not place objects on top of the machine to heat parts of Lima Da and control;
    3, xenon lamp aging chamber after long-term use, spare parts, motor blower unit, wheel deceleration devices, if abnormal noise, should be checked, and pay attention to regular cleaning fuel;
    4, electrical components such as over-temperature phenomena, must be checked immediately causes;
    5, after each use, a xenon lamp aging test chamber should be kept clean to prevent corrosion;
    6, the control cabinet clean-up once a month to prevent excessive dust, affecting the normal operation of equipment;
    7. After the test is complete, you should turn off the main power, water stains wipe clean indoor work, try to keep the chamber in a dry environment;
    8, the electrical components on the control panel, such as the need to exchange failure occurs, Do not indiscriminate demolition ensure xenon lamp aging chamber life.



    Pictures

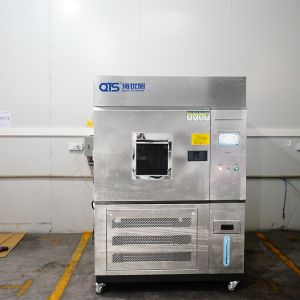

    xenon accelerated weathering tester


    xenon accelerated weathering tester
