Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber

Thermal Shock Chamber.pdf

1. Description:

Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.

2. Specifications of Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber:

3.Notes

1) If the high-temp exposure range lower limit + 60°C is required or the low temp exposure range lower limit -60°C, please select the “ambient-temperature exposure” option

2)If the temp fluctuation need to below ±1.8°C please select the “Low temp fluctuation package”

3) Temperature heat-up/pull down time are applicable only during independent chamber operation

4) If the automatically operated sliding door required, please select the “Automatically door package”

5) Air-cooled condenser / Water-cooled condenser both available

6) Apply on water-cooled condenser only

4. Safety Devices of Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber

1)Hot chamber overheat protection switch

2)Cold chamber overheat protection switch

3)Air circulator overload alarm

4)Refrigerator high/low pressure protector

5)Compressor temperature switch

6)Air pressure switch

7)Fuse

8)Water suspension relay ( water-cooled specification only)

9)Compressor circuit breaker

10)Heater circuit breaker

11)Test area overheat/overcool protector

12)Air purge valve

5.Control

Operation and settings simplified by the use of a touch-screen LCD display (instructions displayed on-screen). At-aglance confirmation of test patterns, test area temperatures, temperature cycles, and trend graph displays.

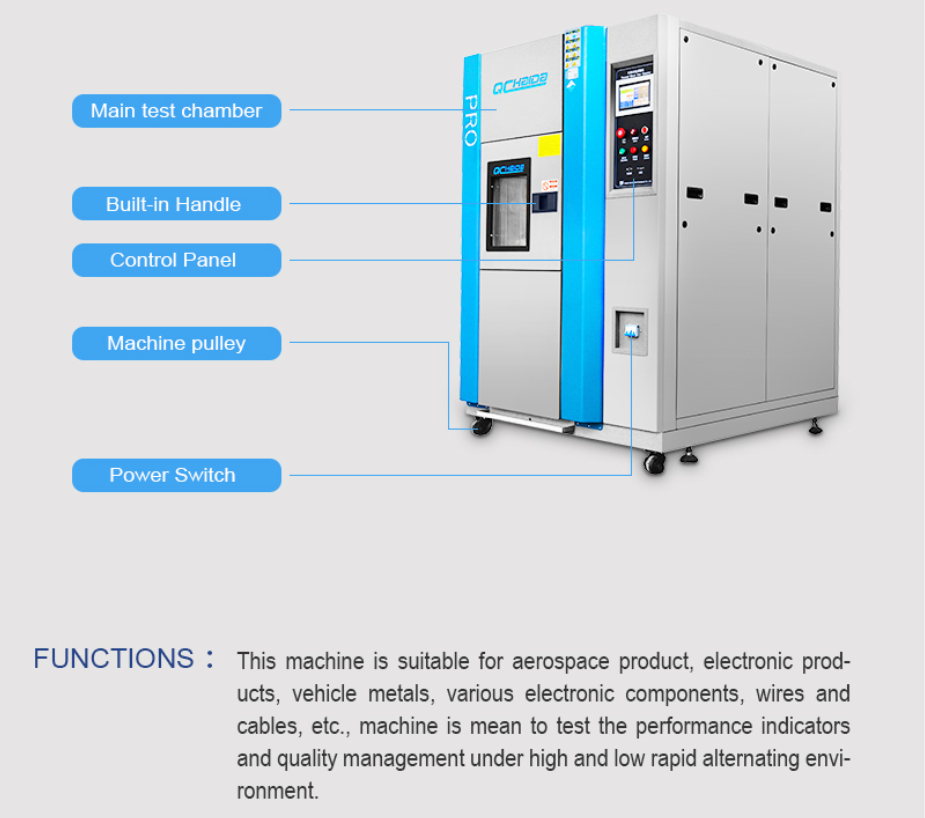

6. Hight-Low Temperature Thermal Shock Chamber Environmtntal Test Chamber view:
