    Color 1/3``CCD camera Optical Measuring Lab Test Machines Quick Measuring 2.0

    Color 1/3``CCD camera Optical Measuring Machine Lab Test Machine Quick Measuring 2.0

    Color 1/3``CCD camera Optical Measuring Machine Lab Test Machine Quick Measuring 2.0 is a photoelectric measuring system of high precision and efficiency. This video measuring system is composed of series of components, such as high resolution CCD color camera continuous zoom lens, Cross generator, precision linear scale, multifunctional digital readout (DRO), 2D measuring software and high precision working table. This Lab video measuring system is supplied with RS-232 interface, the user can manage and output the graph by connecting with PC and running the M2D or QMS3D program.


    The Main Technical Parameters:

    ModelTT-U801
    Glass table size320×280mm
    Travel: X,Y400×300mm
    Net Weight240 kg
    Dimension750×600×920mm
    Travel: Z : 150mmWork distance: 95mm
    Video systemCamera: Color 1/3``CCD camera
    Optical Magnification:0.7~4.5X
    Digital magnification:30~230X
    Object view-field:8.1~1.3mm
    Contour and surface illumination: Ring LED and brightness can be setup
    Power180V(AC)-260V(AC) 50Hz
    SoftwareQuick Measuring 2.0




    Features of Color 1/3``CCD camera Optical Measuring Machine Quick Measuring 2.0:


    1 > Creative modern-shape-design;
    2 > Fashionable auto-painting-craftwork ;

    3 > Steady granite base;
    4 > Stable imported V-shape guide;
    5 > Precise metal and glass worktable;
    6 > High-speed 3-axis CNC driven motor;
    7 > Adjustable USB 40-division ring LED illumination;
    8 > Advanced Pomeas 0.7~4.5X Zoom lens;
    9 > Wonderful SONY 1/2`` Color CCD camera;
    10> Powerful 2.5D measuring software QuickMeasuring 4.1 version.



    Functions of Color 1/3``CCD camera Optical Measuring Machine Quick Measuring 2.0​:

    1> It can measure point, line, circle, arc, oval and rectangular to improve measurement accuracy with multi-point .

    2> It has many features, such as combination of measurements, center structure, the intersection of structure, the midpoint of construction, line structure, a round structure and structural point of view.

    3> Coordinate translation and coordinates straighten out is to make measurement more convenient and efficient and improve measurement efficiency.

    4> Macros can measure the same parts faster and more convenient volume and improve the measurement efficiency.

    5> Measurement data directly input into AutoAD and become a full work circle .

    6> Measurement data can be entered in EXCEL to conduct statistical analysis, can draw a simple Xbar-S Control Yuan, find Ca and other parameters.

    7> Switching language interfaces.

    8> Record user program, editing and execute command.

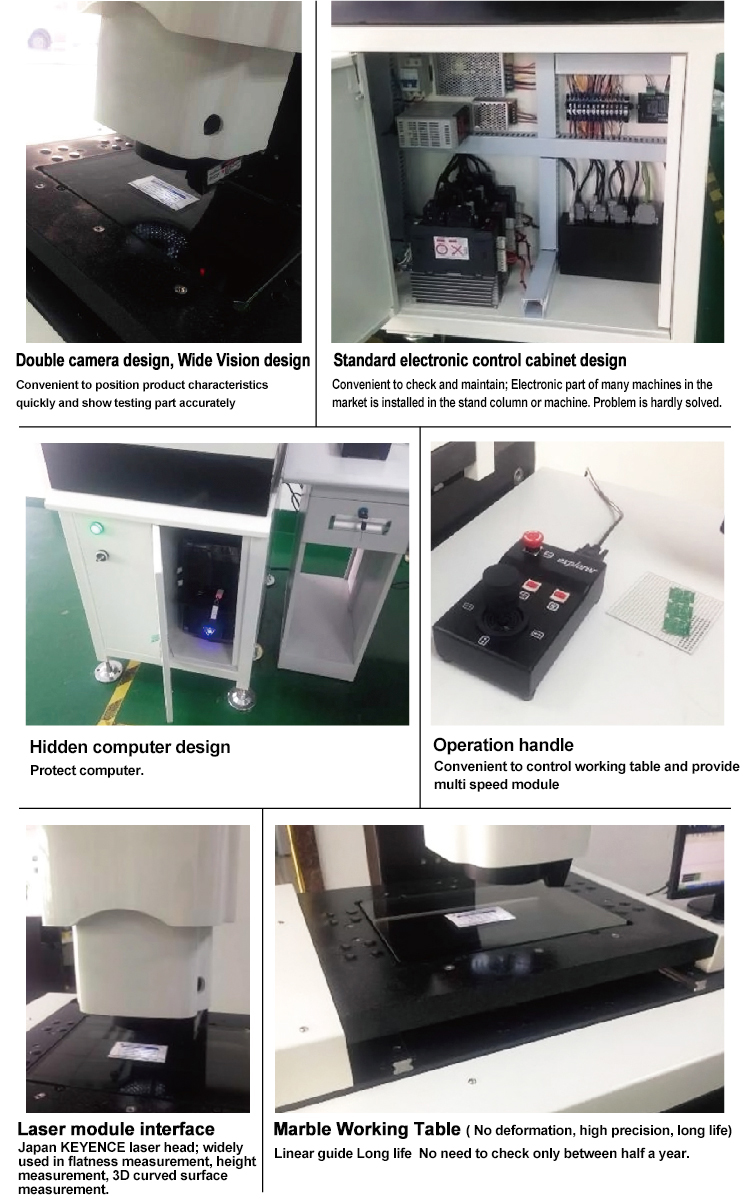

    Color 1/3``CCD camera Optical Measuring Machine Quick Measuring 2.0 view:
