Sand and Dust Testing Environmental Test Chamber with LCD Touch
Screen
Haida Burst
Strength Tester.pdf
Product Description:
Sand and Dust Testing Chamber Environmental Test Chamber LCD Touch
Screen is designed for sealing performance test and reliability test,
widely used in electrical, electronics, automobile, motorcycle, LED
and other products. It is suitable for the work ability test on the
shell sealing performance, product in dust free settlement, in the
environment without apparent air flow or with a strong blast air
and a large amount of sand dust, and similar conditions.
Main Technical Parameters of Sand and Dust Testing Chamber Environmental Test Chamber LCD Touch
Screen
Item | Specification |
Inner chamber size | 120 * 120 * 120cm |
External size | 170 * 150 * 190cm (approx.) |
Air pressure | 86~106kpa |
Studio temperature | RT~60'C, adjustable |
Amount of talcum powder | 2kg per cubic meter of the test chamber volume Can not have been used for more than 20 tests |
Powder type | Talcum powder |
Aspirator flowing quantity | 0~6L/min |
Pressure tolerance | 0~2kpa |
Metal net size | Wire diameter 50um, width of a gap between wires 75um |
Testing time | 0~999h88m99s, adjustable |
Blower | Centrifugal fan |
Blowing dust cycle | Interval control, adjustable |
Chamber material | SUS#304 stainless steel |
Door material | Tempering glass |
Control interface | LCD touch screen |
Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting
pipe, Vacuum pump |
Weight | 400kg |
Power supply | AC380V, 50/60Hz, three phase |
Features of Sand and Dust Testing Chamber Environmental Test Chamber LCD Touch
Screen
1. Formed using CNC machining box, nice shape, and no reaction by
the handle, easy to operate.
2. Imported high grade stainless steel inner tank (SUS304) mirror
panels, use of A3 steel box outside the gall spray, increasing the
appearance of the texture and cleanliness.
3. Equipment containing dust vertical circulation of air, dust can
be reused for testing; device itself has a good sealing
performance, test, laboratory test can clearly observe the
situation; device equipped with a vacuum system to meet the needs
test; equipment dust the bottom of the device can be replaced.
4. Large observation window with bright lights to keep the box, and
use of tempered glass embedded heating element, at any time a clear
observation box condition.
5. Test with 50mm diameter holes for the external test power line
or signal line.
Chamber Structure:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during
testing;
3, Blow fan adopts stainless steel shell, high sealing and wing
speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be
adjusted, dust free float in the sky falling to blowing the hole
together.

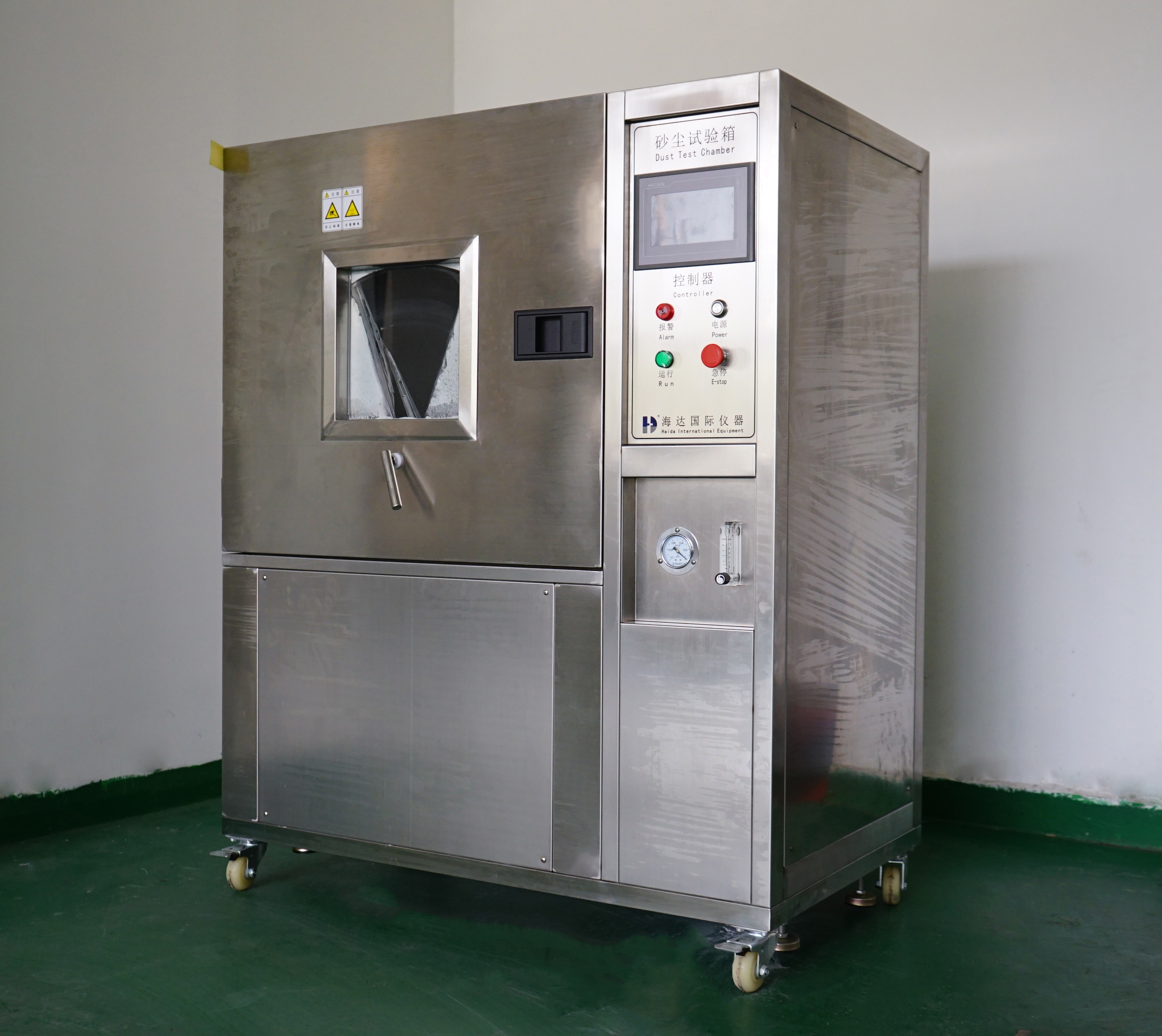

Sand and Dust Testing Chamber Environmental Test Chamber LCD Touch
Screen view:
