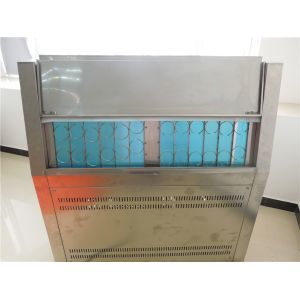

    Environmental Accelerated Aging UV Lamp Testing Machine

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E802-1
    Certification : ISO9001: 2008, CE, ...
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 15 days after order confirmed
    • Product Details
    • Company Profile

    Environmental Accelerated Aging UV Lamp Testing Machine

    Environmental Sun Rain Spray Accelerated Weather Testing / UV Testing Machine


    UV Accelerated Weathering Tester.pdf


    About Product


    Environmental Sun Rain Spray Accelerated Weather Testing / UV Testing Machine simulates damaging effects of long term outdoor UV spectra of sunlight , heat, moisture on materials and coatings. It exposes specimen to varying conditions of weathering- ultraviolet radiation, moisture and heat to test the performance and improve the quality


    USAGE:


    Environmental Sun Rain Spray Accelerated Weather Testing / UV Testing Machine is mainly used in paint and ink paint, resins, plastics, printing and packaging, aluminum, adhesives, car and motorcycle industry, cosmetics, metals, electronics, electroplating, medicine and other fields. Conform ASTMG53-77 specification GB ﹑ GJB MIL CNS ﹑ ASTM JIS IEC ﹑ Fed Test AATCC DIN ﹑ BS﹑ SAE standards.


    Function:


    Meet Specifications

    * Meet customer requirements

    * Stay ahead of government regulations


    Prevent Field Failures

    * Improve quality and durability

    * Enhance reputation

    * Assure product performance


    Gain a Competitive Edge

    * Save on material costs

    * Expand product lines

    * Enter new markets

    * Outrun the competition


    How it Works

    uv lamp testing


    About Product


    UV Weathering Test Chamber can simulate the sun, rain spray and condensation resulting damage to testthe materials by exposure to sunlight with moisture and temperature.


    This test machine can get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur,brittle,strength decreases and oxidation. It provides the reference with testing data for improvement of existing materials, or to assess the impact of changes in product durability and other aspects.


    Product specification:

    Inner chamber Size

    1140mm×400 mm×500 mm

    Customized

    Outside dimension

    1340mm×530 mm×1400 mm

    Materials

    SUS#304 stainless steel ( Internal and external)

    Temperature range

    RT+10~70℃

    Temperature uniformity

    ±1℃

    Temperature fluctuation

    ±0.5℃

    Temperature control

    PID SSR control

    Humidity range:

    ≥90%RH

    Controller

    Korean TEMI 880 programmable controller

    Control mode

    Balance temperature humidity control (BTHC)

    Test cycle setting

    Illumination, condensation and water spray test cycle is programmable

    Lamp power

    40W/Piece

    Distance from sample to lamp

    50±3mm (adjustable)

    Centre distance between the lamp

    70mm

    Irradiance

    1.0W/cm2

    Wavelength ultraviolet light

    UV-A: 315-400nm

    UV-B: 280-315nm

    Lamp lifetime

    1600hrs

    Effective irradiation areas

    640×1140mm

    Illumination temperature range

    50℃~70℃

    Condensation temperature range

    40℃~60℃

    Black panel temperature

    30℃~80℃

    Standard Specimen Size

    75×290mm (24pcs) or 75x150mm (48pcs), or can be customized

    Testing time

    0~999H, adjustable

    Power

    AC220V±10%, 50/60Hz, single phase, 5KW

    Protection system

    Overload short circuit protection, over temperature protection, water

    lacking protection


    uv lamp testing


    Test specimens are mounted on both the front and back side of the UV Tester, providing a large sample

    capacity.

    Sample holder can be customized.
