    Ozone Test Chamber Accelerated Aging Testing for Vulcanized Rubber

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E801
    Certification : ISO9001: 2008, CE, ...
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Ozone Test Chamber Accelerated Aging Testing for Vulcanized Rubber

    Ozone Test Chamber Accelerated Aging Testing for Vulcanized Rubber


    HD-E801 Ozone Aging Test Chamber -150L with humidi...


    Main function

    Ozone Aging Chamber can be used to test rubber products with static tensile deformation, such as vulcanized rubber, thermoplastic rubber, cable insulating bush; expose the test specimens to the sealed air in the test chamber without light and with constant ozone concentration and constant temperature according to predetermined time, and then observe the cracks on test specimens’ surface and the degree of change of other properties to evaluate the rubber’s ozone aging resistance properties.


    Control System

    Temperature controller is imported digital mircrocomputer type screen with PID system ,automatic calculating,man-machine dialogue operation mode,touch type.


    Box structure

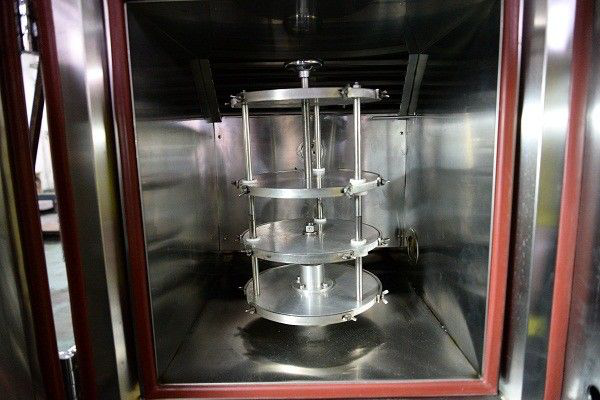

    Ozone aging chamber box using CNC machining, nice shape, no side door handle, easy to operate. Box liner imported stainless steel plate, ozone aging chamber box outside the gall bladder using A3 steel spray, increasing the appearance of texture and cleanliness. Heating fever poses heating, heating up fast, uniform temperature distribution. Built-in 360-degree rotating sample holder.


    Technical parameter

    Model

    HD-E801 ozone aging test chamber

    Ozone concentration

    5~200pphm (adjustable) 200~1000pphm(adjustable)

    Relative humidity

    No humidity, but can produce according to your requirement

    Temperature

    RT+10~+70°C

    Ozone produced mode

    Ozone generator or UV absorption method

    Inside air velocity

    over 2 feet/sec

    Degree of ozone concentration fluctuation

    10%

    Inside size

    500×500×600mm

    air flow

    A.0-6 cfm;B. 10-20 cfh

    weight

    250kg

    power

    1# ,AC220V,15A

    accessories

    tensile fixture 6 groups



    Corresponding standard

    JIS K 6259 , ASTM1149 , ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003
    GB 2951
