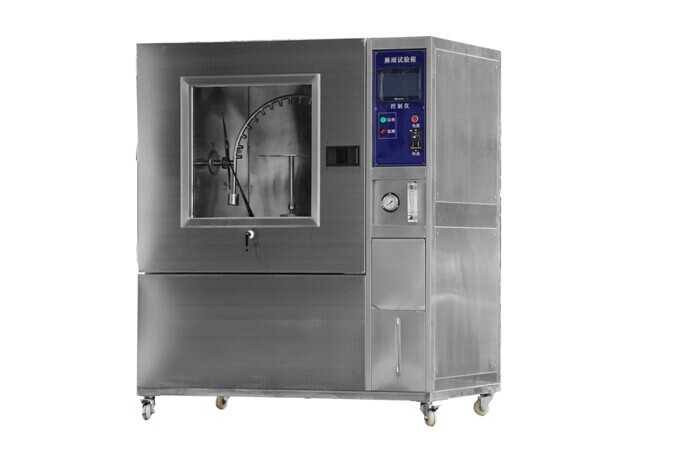

    Laboratory IPX4 Water Ingress Protection Testing Machine with Adjustable Swivel Angle

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E710-2
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Laboratory IPX4 Water Ingress Protection Testing Machine with Adjustable Swivel Angle

    Laboratory IPX4 Water Ingress Protection Testing Machine with Adjustable Swivel Angle


    Haida IPX1 - IPX8 Rain Test Chamber.pdf


    GENERL SPECIFICATIONS

    Packaging Dimensions: (WxDxH) 1480*1300*1850mm

    Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

    Gross Weight: 500kg

    HS Code: 8424899909


    STANDARD FEATURES


    ItemSpecification
    Internal dimension(W*D*H)1000*1000*1000mm(can be customized)
    External dimension(W*D*H)1300*1100*1700mm
    Oscillating tubeRadius 400mm
    Oscillating angle

    IPX3: spray ±60° from vertical line to each side, total 120°

    IPX4: spray ±180° from vertical line to each side, total 360°

    Oscillating speed

    IPX3: 2*120° for 4s

    IPX4: 2*360° for 12s

    Spray nozzle

    Diameter: 0.4mm, removable

    Ensure the water sprays in a line and without tolerance

    Distance between two nozzles50mm
    Turntable dimension500mm
    Turntable rotation speed1-3 cycles/min
    Water flow of each nozzle0.07 L/min +5%
    Test duration1~999,999min, adjustable
    Pressure gauge80-150Kpa
    MaterialChamber - Stainless steel ; Spray nozzle - Brass


    APPLICATIONS& FEATURES

    1. To be used in testing external lighting and signal device and vehicle lamps shell protection.

    2. Cyclic test includes conditions: heating, watering

    3. The internal chamber has lighting device

    4. Rain time, rain interval time and rainfall strength can be adjusted and controlled separately.


    Classify

    Rain Testers With Good Quality, A complete set of IP waterproof test equipment is:
    IPX1/2 vertical drop test equipment (with rotating machine and tilt sample samples machine);
    IPX3/4 automatic arranging the pouring water test equipment (with automatic turntable);
    IPX3/4 handheld drench water test equipment (with lift stents);
    IPX5/6 hosing test equipment (D 6.3 mm, D 12.5 mm nozzle);
    IPX7/8 and the water immersion test equipment (with water temperature control and 10 atmospheric pressure adjustable);
    Auxiliary water supply, filter system (with the above products, especially blunt water device).


    DESIGN DRAWING
