Needle Detector Machine AC 220V,50HZ,120W Power Metal Detectors For
Food Industry
Application :
Needle Detector Machine AC 220V,50HZ,120W Power Metal Detectors For
Food Industry is used mainly for food and other requirements of high detection
sensitivity industries, for the detection of inclusions or lost in
the raw materials or products of Broken Needle, wire or lead,
copper, aluminum, tin, stainless steel and other metals.
Feature:
1. The balanced principle, more stable and reliable, performance is
better;
2. Phase control technology, to carry out product regulation, and
effectively suppress product effect.
3. Use DSP and MCU to combined detection signal data sampling and
data processing, improve the detection effect;
4. Digital frequency generator produces frequency, phase and
amplitude are adjustable sine wave, change the analog circuit
parameters is difficult to adjust and fit condition, can easily
adjust the various parameters sensitivity, etc.;
5. Large LCD display panel, such as operation in both Chinese and
English menu, the user can
choose according to their requirements, with the good man-machine
dialogue interface
6. With self learning function, expanded the range of the detecting
material;
7. With the memory function, could keep more than 10 products
inspection parameters
8. Meet HACCP,GMP approved standard.
9. Monitor the use of sound and light alarm, automatically exclude
or shutdown, the operational use of extremely reliable and
user-friendly.
Spectifications:
Model | W801 | | | | |
Window Height | 100mm | 120mm | 150mm | 200mm | 250mm |
Window Width | 440mm | 440mm | 440mm | 440mm | 440mm |
Sensitivity
| Fe Diameter>= | 0.6mm | 0.8mm | 1.0mm | 1.2mm | 1.5mm |
SUS Diameter>= | 1.5mm | 1.8mm | 2.0mm | 2.5mm | 3.0mm |
Power | 220V,50HZ,120W |
Installation
1) The construction of precision instrument, should not work under
high temperature and humidity.
2) attention to the surrounding environment, should not have moving
ferromagnetic objects, such as electric fans, sewing machines.
Notwithstanding the existence of the unit circuit interference, or
should be avoided.
3) The machine should work properly fixed, shaking or vibration of
the instrument may have resulted in false alarms instrument.
Staff 4) to operate the machine, the body can not carry articles
containing ferromagnetic, such as a lot of keys, cell phones, BB
machine, steel ruler, caliper, such as a screwdriver.
Operating procedures
1) Check the machine probe, the conveyor belt, whether the debris,
tools, etc., should be removed if the following between the probe
and the surface of the conveyor belt below the window pallet.
2) Detection
3) the subject goods should not be too much, can not exceed the
detection channel, if a collision detection probe may cause false
alarms.
4) If the machine detects the abnormal sound, should immediately
stop inspection, troubleshooting and then tested.
5) detection probe should remain very stable, does not allow the
probe stack anything allowed by the probe as a rest support, press
the "Run" button to start action should be light, to prevent false
alarms due to vibration.
6) the machine to vibration or power fluctuations, and occasionally
there will be an alarm phenomenon is normal, not a fault.
7) After each test should be promptly click the "Power" button and
unplug it off.
maintenance
1. Each test is completed, the conveyor belt response, probe
maintenance on the machine removed the foreign body. Special
attention probe window below the surface of any debris between the
pallet and the conveyor belt is not allowed.
2. Rinse detector is not allowed to remove the debris. To ensure
the conveyor belt, the probe control box dry.
3. When summer temperatures or a long time without much prior to
use shall conveyor, pallet accumulation of moisture on the
electrical box to dry before boot.
4. Regularly check the machine transmission parts refueling, if
loose fastening screws should be tightened.

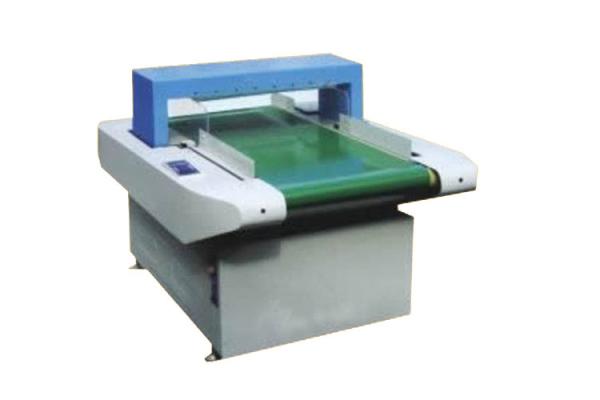

The picture of metal detector:
