Professional 3D Coordinate Optical Measuring Machine for Vision
Measurement System
Applicability:
3D Coordinate Optical Machine for Vision Measurement System can complete all the measuring request and especially fit for the
workshop and measurement lab,widely used in aviation, aerospace,
defense, automotive, mold and electronics industries,etc.
Main Features of 3D Coordinate Optical Machine for Vision Measurement System:
◆ manual operation can be switched fast-moving;
◆ granite structure, the framework is stable and reliable;
◆ You can import DXF files for rapid detection;
◆ measurement data can be imported into Word, Excel, AutoCAD;
◆ Illustrated report output functions, easy to output a detection
result;
◆ axis precision linear rails, ensure that the machine accuracy and
service life;
◆ high-definition camera and high-resolution CCD, to achieve
high-definition measurement products;
◆ precision gearing designed for fast movement.
Main Functions of 3D Coordinate Optical Machine for Vision Measurement System:
1) Configuration of measuring environment parameter and movement
parameter.
2) Probing system configuration and calibration.
3) Capture of measuring point.
4) Basic geometry element.
5) Element’s formation, transformation, review, projection,
storage, transfer and relevant calculation.
6) Setup, storage and transformation of coordinate system and work
piece coordinate system.
7) Assessment of dimension tolerance and position tolerance.
8) Store and input of measuring result file.
9) Import and convert CAD 3D model.
10) Coherence between Model coordinate system and part coordinate
system.
11) Pickup of Features and curved surface points on the model.
12) Creation and measurement of section surface line.
13) Creation and measurement of curved surface.
14) Offline Programming based on CAD model.
Main Parameters of 3D Coordinate Optical Machine for Vision Measurement System:
Model: | HD-6050 |
Work table
| Marble table size(mm) | 930X850 |
Glass table size (mm) | 760X650 |
Travel: X,Y (mm) | 600X500 |
Travel: Z | 230mm |
Z Effective space: | 200mm |
Weight: | 860kg |
Dimension (mm): | 1130X1050X1700 |
Work distance :95mm | X,Y,Z Data Resolution :0.5um |
Image system | 1. Camera: Color 1/3``CCD camera 2. Video magnification :33-195X 3. Optical Magnification :0.7X-4.5X 4. Object view-field:8.1-1.3mm( for the length of the diagonal ) 5. The numerical errors of X, Y coordinates show=(3+L/200)um(L For
the length of the product being tested,unit:mm) 6. Contour and surface illumination: Ring LED and brightness can be
setup |
Power supply | 180V(AC)-260V(AC) 50Hz |
Power | 50W(without computer) |
Geometric feature measurement and construction:
1. Measuring: measure any geometry (angle, diameter, radius,
coordinates of the point to line distance, linear distance, round
eccentric, two circular pitch, etc.) on a plane
2. Electronic Caliper: measure any arc to arc between the farthest,
closest distance.
3. Measure the height of the step, the hole depth.
4. The form and position tolerances: straightness, roundness,
perpendicularity, concentricity.
maintenance:
1, the instrument should be placed in a clean, dry room
(temperature 20 ℃ ± 5 ℃, humidity below 60%), to avoid fouling the
surface of optical parts, metal parts to rust, dust and debris
falling into the movable rail, affecting the performance of the
instrument.
2, the instrument after use, should be ready to wipe clean working
surface, the best and then cover dust jacket.
3, transmission equipment and rail movement, should be regularly
lubricating oil, so that smooth movement mechanism to maintain good
condition.
4, table glass and painted surfaces dirty, you can wipe clean with
a mild detergent and water. Never use organic solvents to clean the
surface of the paint, otherwise, would tarnish the paint surface.

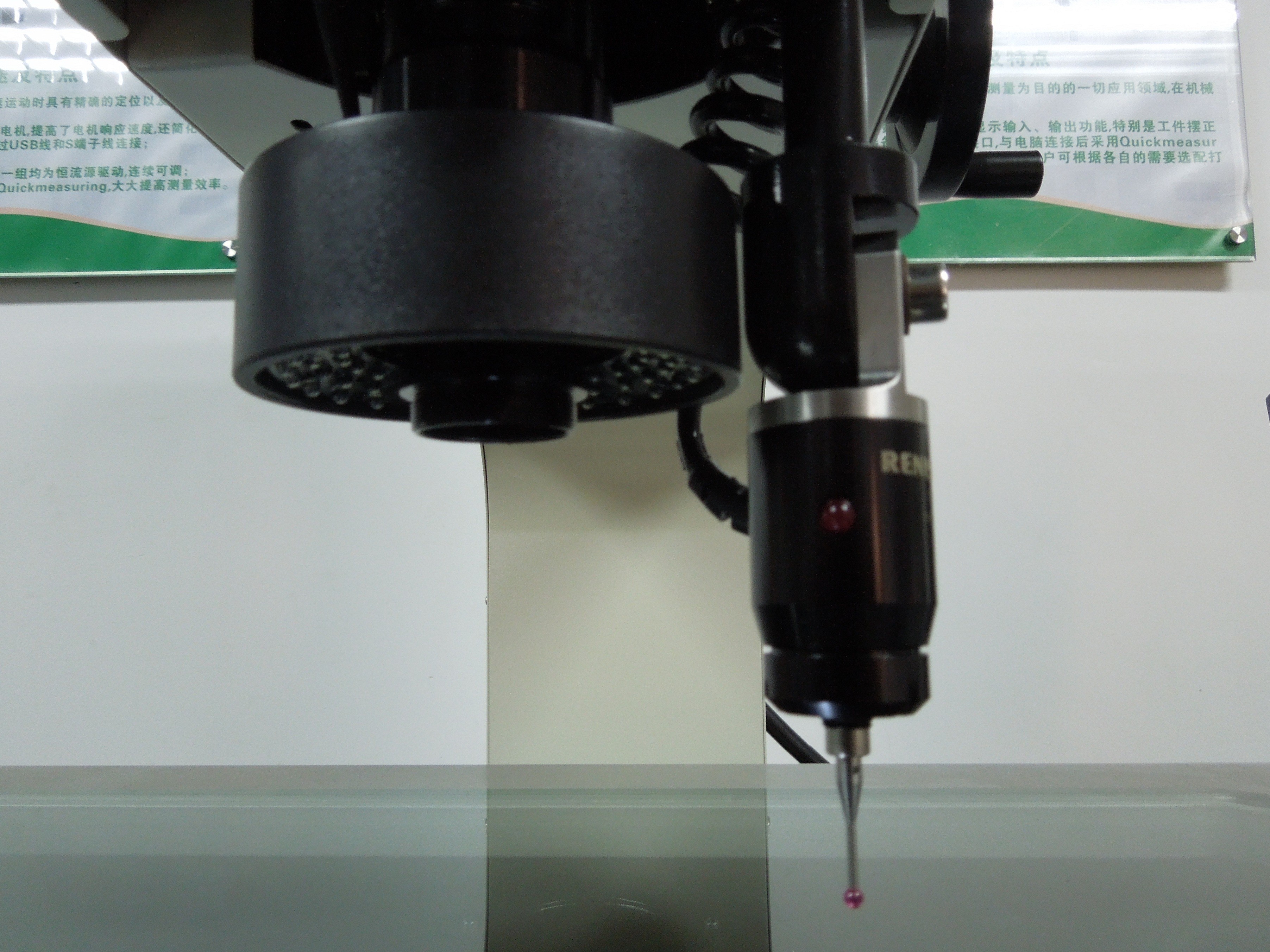

3D Coordinate Optical Machine for Vision Measurement System view:
