IP Protection Tset Lcd Touch Screen Sand And Dust Test Chamber With
Talcum Powder
Dust Test
Chamber - IP5X&6X.pdf
Product Description:
Sand And Dust Test Chamber With Talcum Powder is maily used to test control cabinet,
household appliances, low voltage electric appliance, automobile,
lamps and lanterns, motorcycle parts, ect outer shells. Test
chamber pressure can be constant and changed, suitable for indoor
low concentration dust pollution test, assessment sample in this
environment of sealing and corrosion degree.
Applicable Testing Standards:
IEC- 60529, GB2423.37, GB4706, GB 4208, GB 10485, GB 7000.1, JIS-D0207-F2 , GJB 150.12, DIN, etc
Features:
1. The interior chamber used stainless steel, and the outer used
cold-olled sheet with electrostatic spraying.
2. Small type programmable controller, the system has the
protection function.
3. Mess diameter: 50μm
4. Wire spacing: 75μm
5. Stone powder quantity: 2kg/m3~4kg/m3
6. Suitable for for electrical, electronic, automobile, motorcycle
LED and other products, spare parts etc dust test.
7. Equipment containing dust vertical circulation of air, dust can
be reused for testing.
8.Device equipped with a vacuum system to meet the needs test.
Technical Parameters:
| Internal Dim.W×H×D(mm) | 1000×1000×1000 | 1000×1000×1000 |
| External Dim.W×H×D(mm) | 1350×1950×1350 | 1350×1950×1350 |
| Testing Type | F1 | F2 | F3 | IEC60529 |
| C1 | C2 |
| Concentration of dust(mg/m3) | Above 60000 | Above 3000 | Above 100 | Above 5000 | Above 100 |
| Testing Temp. | 20 °c ±15 °c |
| Humidity.Range | 45%~85%RH |
| Testing Time | Swirl time | 5S or other | NO |
| Rest time | 15S or other |
| Total time | 5H | 8H | 8H | 2H | 6H |
| Material | Exterior | SUS#304+Powder Coated |
| Interior | SUS#304 |
| Other Components | Chamber lamp,Wiper,Casters with adjusters |
| Power Source(K.W.) | AC 1Ψ 220V 60/50Hz 4KW |
Working Environment:
1. Temperature: 5~35'C; Relative humidity: 45%~85%RH;
2. Without strong vibration and Electromagnetic effect around;
3. Test chamber should be stable placed and keep balance;
4. Installation place should keep good ventilation, without strong
airflow, high dust and corrosive material.

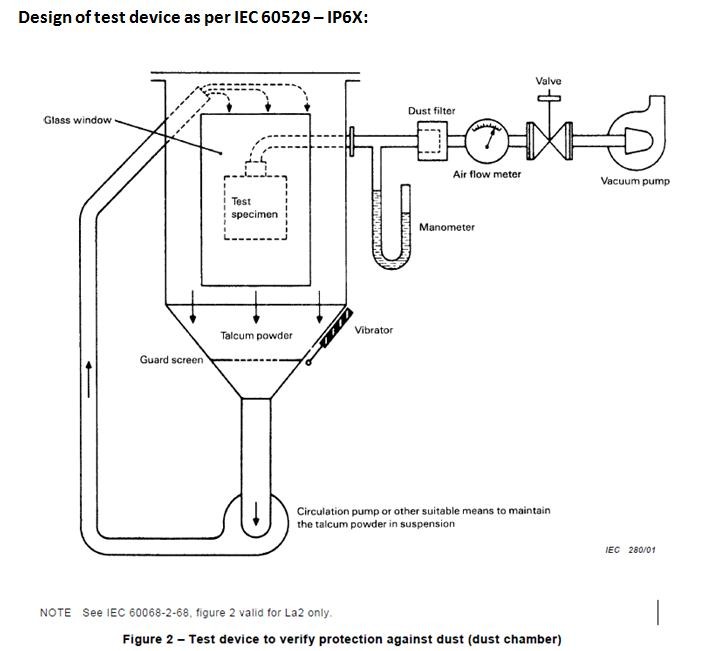

Chamber Structure:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during
testing;
3, Blow fan adopts stainless steel shell, high sealing and wing
speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be
adjusted, dust free float in the sky falling to blowing the hole
together.

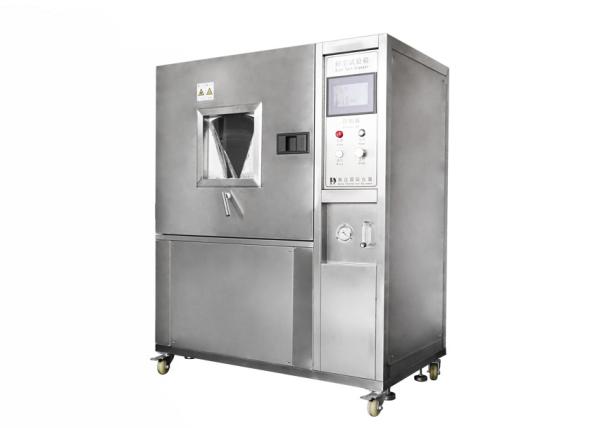

Sand and Dust Resistance Testing Cabinet View:
