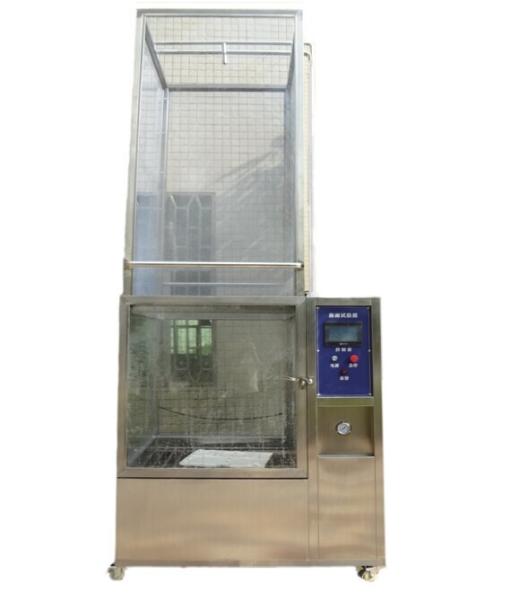

    Automatic Mobile Phone Water ResistanceIPX5 / IPX6 Waterproof IP Test Equipment

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E710
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Automatic Mobile Phone Water ResistanceIPX5 / IPX6 Waterproof IP Test Equipment

    Automatic Mobile Phone Water ResistanceIPX5 / IPX6 Waterproof IP Test Equipment

    Water Spray Test Chamber.pdf


    Description:

    The IPX5 / IPX6 Material Waterproof / Water Spray / Rain Spray Test Equipment is suitable for electric products assessment, shell and seal in the rain environment can ensure that equipment and components good performance test. This product uses scientific design, makes the equipment can realistic simulation drop of water, water spray, splash water, water spray, etc., various kinds of environment. Into the comprehensive control system and the adoption of the frequency conversion technology, which makes the rainfall test product frame rotation Angle, jet pendulum rod swing Angle of water quantity and the oscillating frequency can be automatic control.


    Water Dripping Test (Meet IPX1 and IPX2 test)

    1. LCD touch screen controller with PLC control
    2. Drip box size: 1000x1000mm (or 500x500mm),or custom size as option
    3. Needle diameter: 0.4mm
    4. Distance between needle: 20mm
    5. Dropping rate: 1mm+0.5mm/min (IPX1),3mm+0.5mm/min (IPX2)
    6. Dropping height: 200mm (adjustable)
    7. With timer, flow display
    8. With rotating table, diameter 700mm, 1rpm,
    9. 15o tilt plate, height adjustable
    10. Meet IEC60529, IEC60598


    Rain Spray System (Meet IPX3 and IPX4, 4K test)

    1. LCD Touch Screen Display and Control
    2. Nozzle diameter: 0.4mm
    3. Nozzle distance: 50mm
    4. Flow rate: 0.07L/min (IPX3,4), 0.6+/-0.5L/min (IPX4K)
    5. Arm Radius: 300mm, 400mm, 600mm, 800mm, 1000mm, 1200mm or 1500mm
    6. Rotating angle: +/-270, adjustable.
    7. Rotating speed: adjustable
    8. Rotating table: speed is adjustable
    9. Adjustable spray flow and spray time.
    10. With 0-400kPa adjustable pressure regulator
    11. All 304 stainless steel design, both interior and exterior
    12. With chamber as option


    Jet Nozzle (Meet IPX5 and IPX6 test)

    1. 6.3mm nozzle diameter, for IPX5 test. Water flow: 12.5L/min.
    2. 12.5mm nozzle diameter, for IPX6 test. Water flow: 100L/min.
    3. Meet IEC60529, IEC60335
    4. Water Pumping System as option



    Main Parameters of Material Waterproof / Water Spray / Rain Spray Test Equipment:


    Model

    HD-E710

    Studio size

    (D×W×H)80 ×130 ×100cm

    Swing pipe diameter

    0.4m, 0.6m, 0.8m, 1.0m (according to the size of the measured object to select the swing pipe size)

    Pendulum tube angle

    60 degrees ,vertical ± 90 and 180 degrees

    Orifice

    The removable design, pinhole 0.4mm, specially designed nozzle, spray rain rain water pressure 50-150kpa

    Testing temperature

    Room temperature

    Specimen rotative speed

    1-3r/min (Adjustable)

    Power

    1 phase, 220V, 5KW

    Weight

    approx.350kg



    Features of IPX5 / IPX6 Material Waterproof / Water Spray / Rain Spray Test Equipment:


    1. Rotating rain and spray nozzles designed to IPX specifications

    2. Speed control for the rotating spray nozzles

    3. Stationary product shelf - A rotating shelf is optional

    4. Water pressure regulators, gauges and flow meters

    5. Water circulation system to reduce water consumption

    6. Adjustable swivel angle

    7. Replaceable swivel tubes

    8. Nozzle fittings can be swiveled

    9. Exchangeable nozzle fittings

    10. Adjustable water volume flow

    11. Measurement of water volume flow


    Water Pumping System (For IPX1,2, IPX3,4, IPX5,6)

    1. Water pump for large flow: 0-7m3/h
    2. Water pump for small flow: 0-3m3/h
    3. Water inlet
    4. With water filters
    5. Pressure display and water flow display
    6. Safety overload protection on pump and motor


    PLC Controller:

    1. PLC + touch screen interface
    2. test parameter setting and monitoring
