Furniture Testing Machine Integrated Mattress Test Equipment(PLC Controller)

GENERL SPECIFICATIONS

Estimated Packaging Dimensions: (W*D*H) 3000*1600*2000mm

Power supply source: 3-PH, 380V±10%, 50/60Hz

Estimated Gross Weight: 1300kg

HS Code: 9024800000

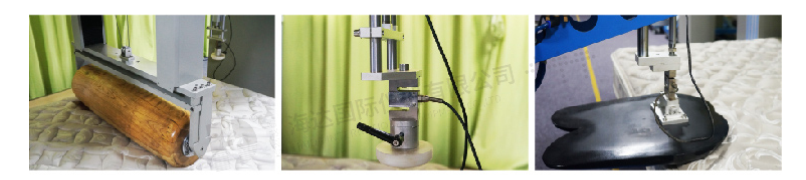

THREE FUNCTIONS

1) DURABILITY TEST

STANDARD FEATURES

TEST STANDARD

EN 1957

Roller Specification:

Length: 1000mm

Roller Diameter: φ300mm

APPLICATIONS & TEST PURPOSE

Using a horizontal hexagonal wooden drum roll or cylinder (both ends of the diameter of 250 mm, the middle part of the 300 mm, rolling back and forth on the mattress, simulate human motion to assess the durability of the mattress.

The Mattress Durability Tester has been manufactured to determine the durability of any type of mattress and box spring unit, regardless of the materials of construction, by simulating long-term use conditions. It consists of a weighted roller which moves width ways across a test mattress to simulate body movement. The length of stroke to which the Roller moves is very easily adjusted, by sliding the stroke adjusters to left or right, to suit the relevant mattress under test. Unloading and loading of the Roller onto the test mattress is done easily via a motor driven lifting assembly.

2) EN HARDNESS & HEIGHT CHANGE TEST

Total third times for Hardness test:

1.Test hardness after 100 cycles roller

2.Test hardness after 5,000 cycles roller ( or another appointed cycles)

3.Test hardness after 30,000 cycles roller

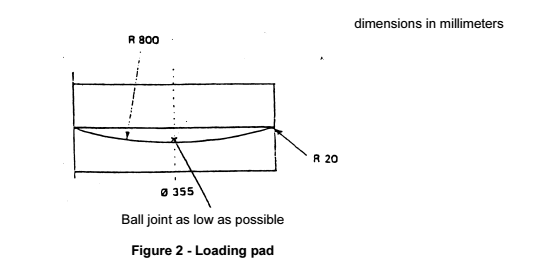

Loading Pad:

STANDARD FEATURES

TEST STANDARD

EN 1957

APPLICATIONS & TEST PURPOSE

The test machine combines the loading device (roll) with a hardness measuring device. Thus, firmness test can be carried out according to EN 1957, without the need for a rearrangement of the specimen, which would falsify the measured values. It can also display height change by servo measuring system.

After simply loosening the front frame reinforcement the specimen can be inserted into a flexible test base plate. This makes the testing device very effective and space-saving.

Software allows for a flexible parameter entry, the execution of different testing procedures, a graphical representation of measured values, test evaluation, and logging. Then the pre-set number of cycles is reached, the test is ended automatically.

3) EDGE TEST

STANDARD FEATURES

TEST STANDARD

EN 1725

APPLICATIONS& TEST PURPOSE

The machine increases mattress fatigue test function, it simulate human sitting on the edge of mattress, with 1000N force to test the fatigue of mattress for 5000 cyclic according to EN1725.
