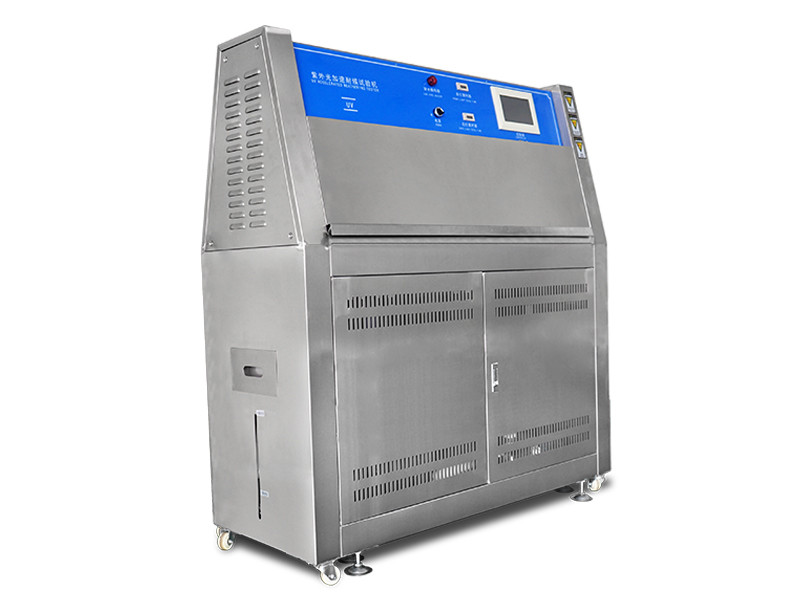

Programmable Simulated UV Environmental Testing Machine UV Aging Equipment

    Buy cheap Programmable Simulated UV Environmental Testing Machine UV Aging Equipment from wholesalers

    Buy cheap Programmable Simulated UV Environmental Testing Machine UV Aging Equipment from wholesalers
    • Buy cheap Programmable Simulated UV Environmental Testing Machine UV Aging Equipment from wholesalers

    Programmable Simulated UV Environmental Testing Machine UV Aging Equipment

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-E802
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow, MoneyGram
    Supply Ability : 30 Sets per Month Haida
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Programmable Simulated UV Environmental Testing Machine UV Aging Equipment

    Programmable Simulated UV Environmental testing machine UV aging equipment


    Applications

    1. To get the results of damage after several days or weeks which is equal to expose to outside for a few months. The damages include fading, discoloration, brightness down, powder, crack, blur, brittle, strength decreases and oxidation.

    2. Simulate the sun, rain spray and condensation resulting damage to test the materials by exposure to sunlight with moisture and temperature.


    Standard Features

    ItemSpecification
    Chamber dimension (W*D*H)1300*500*1460mm
    Chamber materialSUS#304 stainless steel
    Temperature rangeRT to 70℃
    Temperature fluctuation≤±1.0℃
    Temperature uniformity3℃
    ControllerProgrammable controller, LCD touch screen
    Humidity range≥75%RH
    Control modeBalance temperature humidity control (BTHC)
    Test cycle settingExposure, condensation and water spray test cycle is programmable
    Water spray cycleSpray 18mins in every 120mins / spray 12mins in every 60mins
    Water usage8L/day
    Distance from sample to lamp55±2mm
    Centre distance between lamps65~70mm
    Irradiance range0.45~0.90W/m2
    UV lampsImported Atlas UV-A: 315-400nm (8pcs, 1600h lifetime)
    Lamp power40W/Piece
    Specimen Size75×290mm (24pcs) / 75x150mm (48pcs), maximum thickness 5mm
    Testing time0~999H, adjustable
    Protection system

    Overload short circuit protection

    Over temperature protection

    Water lacking protection

    Earth leakage protection

    Auto shut off protection



    FAQ


    How to install and use the product?


    The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.


    How about the packing for machine, is it safely protected during transportation?
    Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.


    What is the order process?
    Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
