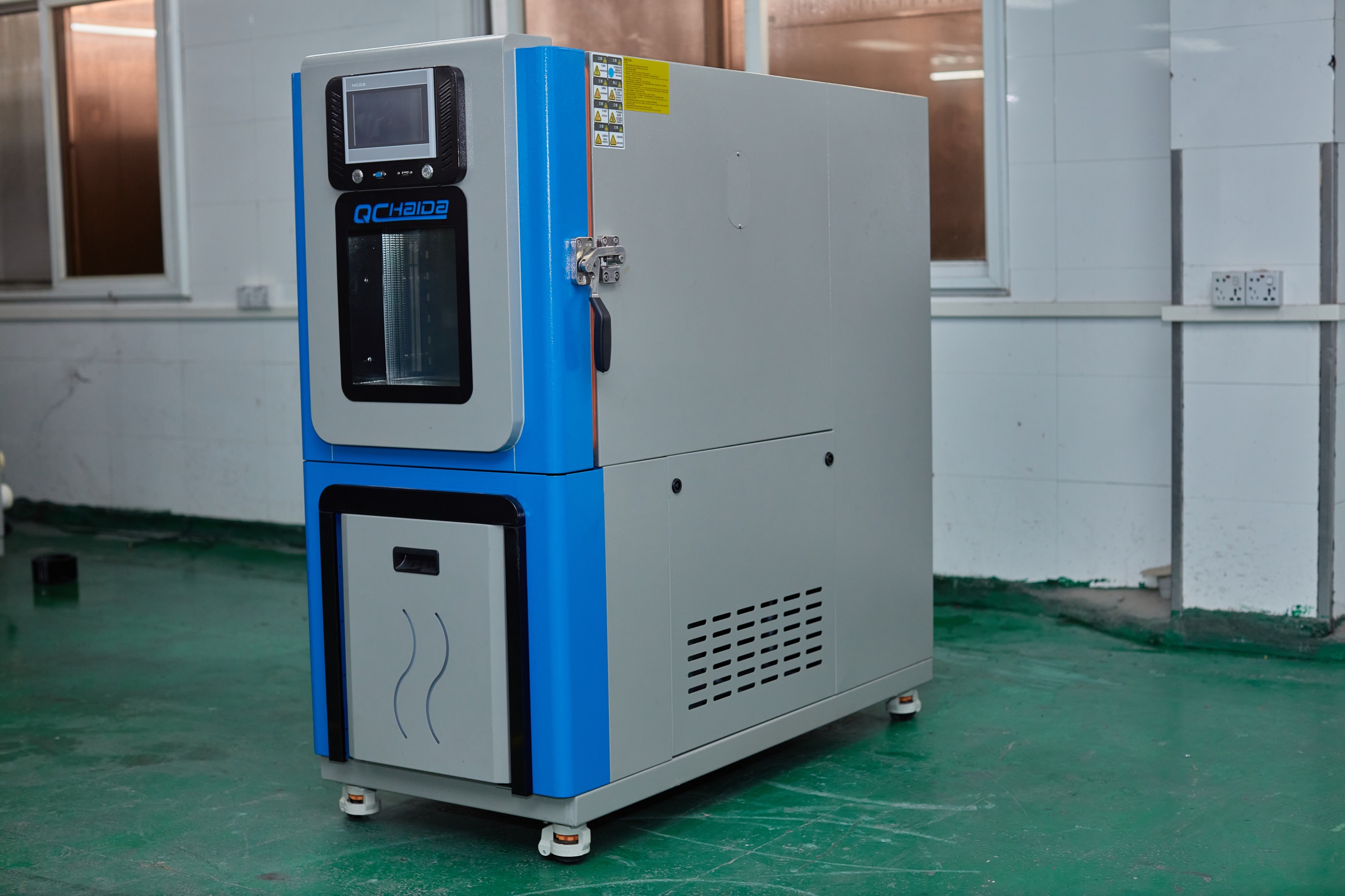

    Laboratory Electrical Test Programmable Paint Type 150L Humidity Temperature Chamber

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-E702-150
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Laboratory Electrical Test Programmable Paint Type 150L Humidity Temperature Chamber

    Laboratory Electrical Test Programmable Paint Type 150L Humidity Temperature Chamber


    APPLICATIONS

    High and low temperature test box is suitable for military, aerospace products, information electronic instruments, materials, electrical, electronic products, automotive electronic components in high and low temperature environment, testing its performance indicators.


    Characteristics of control system

    Temperature fluctuation: ±0.5℃, temperature uniformity: ±2℃.
    Temperature overshoot is less than or equal to 3℃.
    Temperature recovery time is less than or equal to 5 minutes.
    Standard
    GB/T 10589-2008 Specifications for low temperature test chambers
    GB/T 10592-2008 Specification for low/high temperature test chambers
    GB/T 11158-2008 Specifications for high temperature test chambers
    GB/T5170.2-2008 Inspection methods for environmental testing equipments for electric and electronic products.
    Temperature testing equipments



    HUMIDITY RANGE


    STANDARD FEATURES

    ModelHD-E702-150-7
    Internal dimension (W*D*H)500*500*600mm
    External dimension (W*D*H)700*1280*1480mm
    Temperature range-70~+150℃
    Temperature fluctuation±0.5℃
    Temperature uniformity2℃
    Humidity range20~98%RH (Refer Image below)
    Humidity fluctuation±2.5%RH
    Humidity uniformity3%RH
    Cooling speed1℃/min in average (without loading)
    Heating speed3℃/min in average (without loading)
    Internal chamber materialSUS#304 stainless steel, mirror finished
    External chamber materialStainless steel
    Cooling methodAir cooling
    Controller

    LCD touch screen, programmable control temperature and humidity

    Can set different parameter for cyclic test

    Insulation material50mm high density rigid Polyurethane foam
    HeaterExplosion-proof type SUS#304 stainless steel fins radiator pipe heater
    CompressorFrance Tecumseh compressor x 2sets
    LightingHeat resistance
    Temperature sensorPT-100 dry and wet bulb sensor
    Observation windowTempered glass
    Testing holeDiameter 50mm, for cable routing
    Sample traySUS#304 stainless steel, 2pcs
    Safety protection device

    Protection for leakage

    Over-temperature

    Compressor overvoltage and overload

    Heater short circuit

    Water shortage
