    Laboratory Automatic 800L Electronic Appliances Constant High Low Temperature Chamber

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : HD-E702-800
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 sets per month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Laboratory Automatic 800L Electronic Appliances Constant High Low Temperature Chamber

    Laboratory Automatic 800L Electronic Appliances Constant High Low Temperature Chamber


    APPLICATIONS

    1. Simulate the test environment with different temperatures and humidity
    2. Cycling tests include climatic conditions: heat preservation test, cooling test, heating test, wetting test and drying test...

    3. The cable port is equipped with a flexible silicone plug for cable wiring to provide conditions for the test unit in operation

    4. Discover the weakness of the test unit in the short-term test with accelerated time effect



    CHAMBER DESIGN FEATURES

    1. High performance and quiet running (68 dBA)

    2. Space-saving design, which can be installed flush with the wall

    3. Fully enclosed and insulated around the door frame

    4. A 50mm diameter cable port o left side, with flexible silicone plug

    5. Accurate wet/dry-bulb humidity measurement system for easy maintain


    PROGRAMMABLE CONTROLLER

    1. The PLC controller of the test chamber

    2. Step types include: ramp, soak, jump, automatic start and end

    3. The RS-232 interface connects to the computer output


    HUMIDITY RANGE

    20 to 98%RH per chat (no live load)


    STANDARD FEATURES

    ModelHD-E702-800
    Internal dimension (W*D*H)1000*800*1000mm
    External dimension (W*D*H)1500*1180*1900mm
    Temperature range-70~+150℃
    Temperature fluctuation±0.5℃
    Temperature uniformity2℃

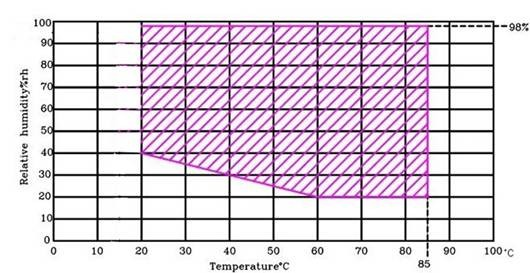

    Humidity range20~98%RH (Refer Image below)
    Humidity fluctuation±2.5%RH
    Humidity uniformity3%RH
    Cooling speed1℃/min in average (without loading)
    Heating speed3℃/min in average (without loading)
    Internal chamber materialmirror finished
    External chamber materialStainless steel
    Cooling methodAir cooling
    Controller

    LCD touch screen, programmable control temperature and humidity

    Can set different parameter for cyclic test

    Insulation material50mm high density rigid Polyurethane foam
    HeaterExplosion-proof type SUS#304 stainless steel fins radiator pipe heater
    CompressorFrance Tecumseh compressor x 2sets
    LightingHeat resistance
    Temperature sensorPT-100 dry and wet bulb sensor
    Observation windowTempered glass
    Testing holeDiameter 50mm, for cable routing
    Safety protection device

    Protection for leakage

    Over-temperature

    Compressor overvoltage and overload

    Heater short circuit

    Water shortage


    PLC OPERATION

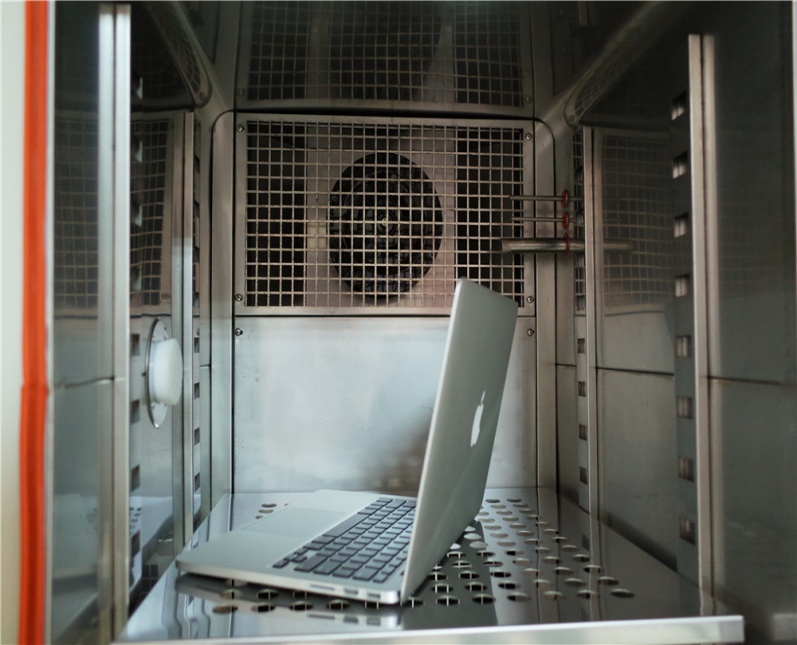

    INTERNAL CHAMBER
