Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester

    Buy cheap Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester from wholesalers

    Buy cheap Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester from wholesalers
    • Buy cheap Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester from wholesalers
    • Buy cheap Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester from wholesalers

    Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-B602
    Certification : CE,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 75 Piece / Pieces Per Month
    Delivery Time : 20 Days After Order
    • Product Details
    • Company Profile

    Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester

    Tensile Strength Test Machine Electronic Servo Desktop Tensile Tester


    Applications
    Desktop Tensile Testing Machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps for paper, tape, film, etc.

    This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.


    Standard Features
    ItemDescription
    Frame capacity200kg
    Load cell brandChina brand, 200kg (5,10,50,100kg are optional)
    Load accuracy1% F.S
    PrintingBuilt-in Printer
    Control systemController with LED
    MotorAdjustable-speed motor, ball screw rod
    Force readingKG/N/LB
    Vertical test space900mm including fixture
    Test speed50~300mm/min (adjustable by rotary knob)
    SoftwareTM 2101
    Data displayMax. break force
    Safety featuresOver-load protection
    Upper and lower limit switches
    Load sensor with automatic retreat

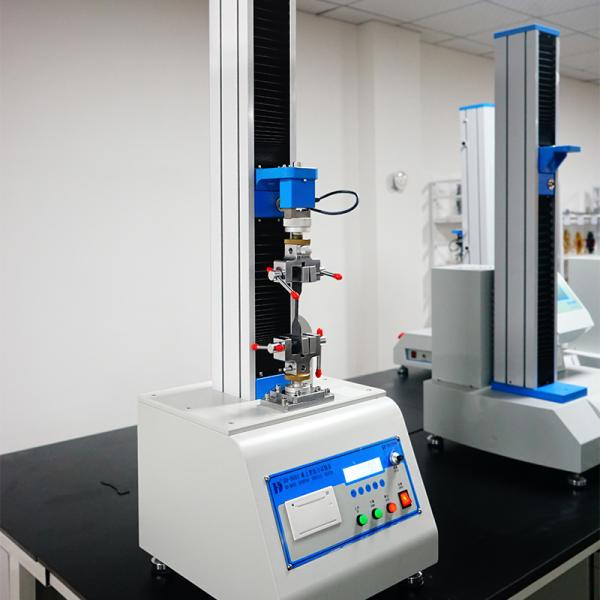

    Product Image:



    Product Features:
    1. Motor system:AC motor +Driver +High precise ball screw (Taiwan)
    2. Control system: Microcomputer
    3. Displacement resolution: 0.001mm
    4. It is with build-in printer, can print the testing date, time, maximum, average and minimum value.


    Adhesives Tape/Pressure Sensitive Tape

    EN 1719: Loop Tack Test

    ASTM D3654: Shear Adhesion Test

    ASTM D3759: Tensile &Elongation Test

    FTM: 180&90 Degree Peel Test, Loop Tack

    EN 1939, ASTM D3330: 180&90 Degree Peel Test

    ISO 11339, ASTM D1876, ASTM F2256: T-type Peel Test


    Film/Plastic Film

    ASTM D882: Tensile Test

    ASTM F1306: Puncture Test

    ASTM D1938: Trouser Tear Test

    ASTM D2732: Thermal Shrinkage Test

    ASTM D1709, ISO 7765-1: Free-Falling Dart Method

    ASTM D1894: Static and Kinetic Coefficients of Friction

    ASTM D1424, ASTM D1922, ISO 1974: Elmendorf Tearing Strength Test
