    BIFMA Safa Durability Tester / Safa Durability Furniture Testing Machine Capacity 200KG

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-F769
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

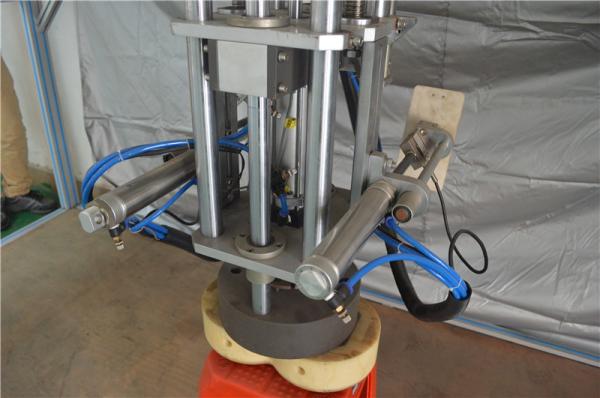

    BIFMA Safa Durability Tester / Safa Durability Furniture Testing Machine Capacity 200KG

    High Quality BIFMA Safa Durability Tester/Furniture Safa Durability Testing Machine


    1.Product Introduction:


    The machine is mainly used to test durability of seat,back and arm rest.Using certain shape and load modules,with specific form,frequency,respectively,repeating load seating to test backrest and armtest.This test method is to simulate the daily use condition,to inspection sofa durability under long-term repeatability load capacity.


    2.Main Technical parameters:


    1) specimen: maximum size of applicable sofa: 2200x1200x1200 (L x W x H)
    2) control mode: 7-inch touch screen + huichuan PLC
    3) electrical connection: single-phase AC220V/50HZ
    4) air pressure: 6-8 Bar
    5) standard accessories: seat surface loading pad :(fiberglass material)*1;Backrest loading block (1);
    6) size: overall 3000x1600x2300 (L x W x H)
    Controller 450x450x1100 (L x W x H)
    7) weight: 300KG


    3.Main Configuration:


    1) PLC inovance

    2) touch screen kunlun tunneling (7 inches)

    3) force sensor, tecsis, Germany

    4) program independent research and development of haida

    5) electrical accessories omron

    6) the new pneumatic cylinder of Taiwan
