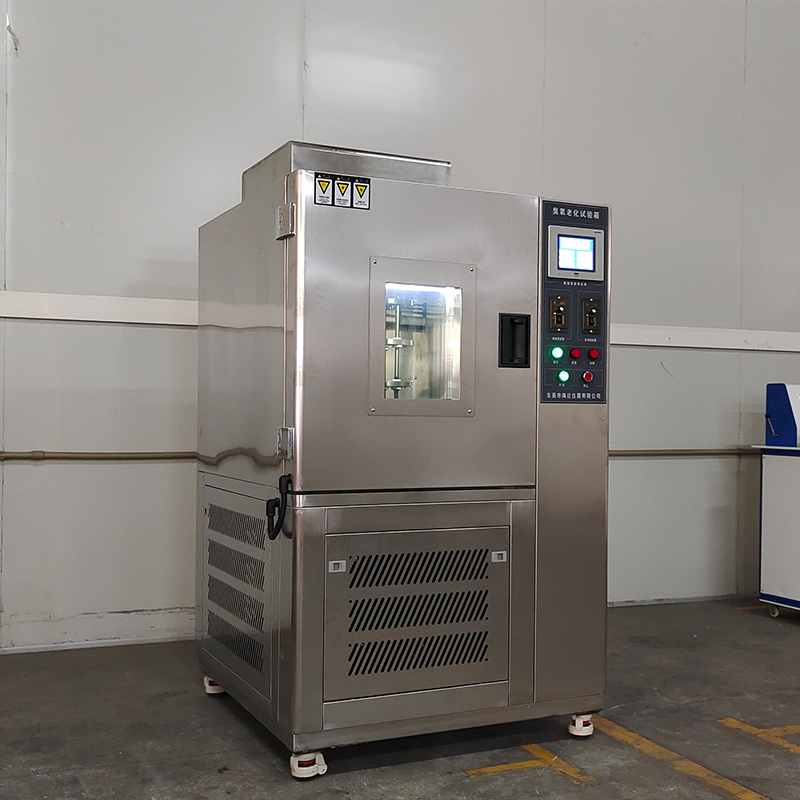

Customized Automatic Environmental Ozone Corrosive Aging Test Chamber

Generl Specifications
Packaging Dimensions: (WxDxH) 1200*1200*1950mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 280kg
HS Code: 8479899990

Standard Features

Chamber Structure And Features
1, Internal material adopts high quality mirror stainless steel for ozone resistance.
2, Insulation material: high-density glass fiber
3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.
4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.
5, Chamber bottom has high quality caster for convenient move.
6, Observation window uses multilayer hollow tempered glass.
7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.
8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.

Control System
1, With imported micro-computer LCD controller to control the temperature.
2, PID control
3, With auto calculation function to reduce the setting inconvenience.
4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto calculate with high accuracy PID + SSR control
5, Temperature measurement: SUS#304, PT 100
