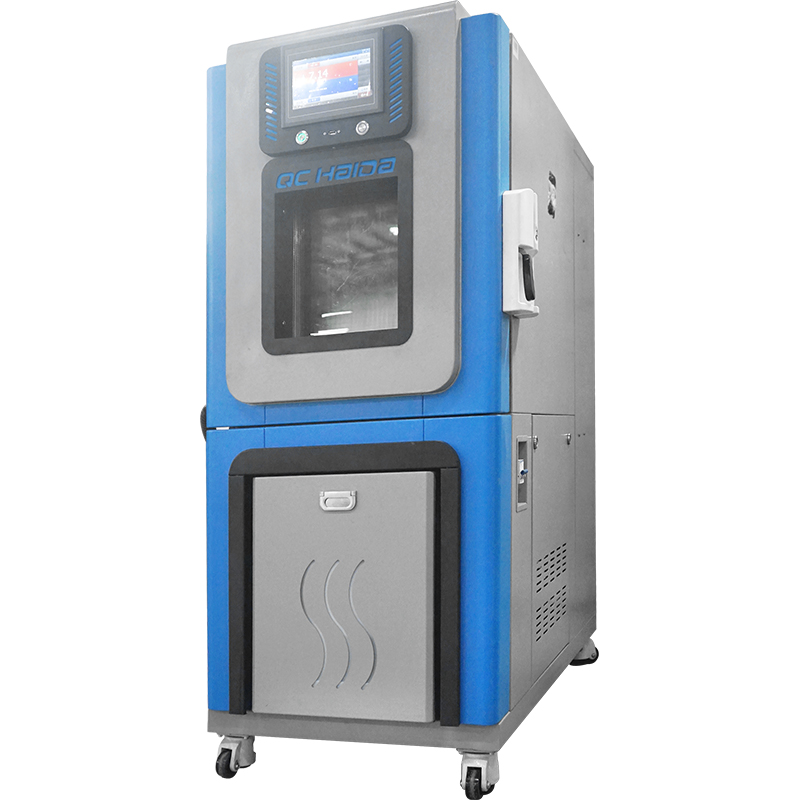

    Air Cooling Stainless Steel Constant Temperature And Humidity Chamber

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-E702
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 30 Sets per Month Haida
    Delivery Time : 15 days after order confirmed
    • Product Details
    • Company Profile

    Air Cooling Stainless Steel Constant Temperature And Humidity Chamber

    Constant Tempreture & Humidity Environmental Climate Test Chamber


    GENERL SPECIFICATIONS

    Packaging Dimensions: (WxDxH) 800*1280*1580mm

    Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)

    Gross Weight: 230kg

    Standard Features

    ModelHD-E702
    Internal dimension(W*D*H)400*500*500mm
    External dimension(W*D*H)600*1080*1380mm
    Temperature range-40~+150℃
    Temperature fluctuation±0.5℃
    Temperature uniformity2℃
    Humidity range20~98%RH (Refer Image below)
    Humidity fluctuation±2.5%RH
    Humidity uniformity3%RH
    Cooling speed1℃/min in average (without loading)
    Heating speed3℃/min in average (without loading)
    Internal chamber material304 stainless steel, mirror finished
    External chamber materialStainless steel
    Cooling methodAir cooling
    Controller

    LCD touch screen, programmable control temperature and humidity

    Can set different parameter for cyclic test

    Insulation material50mm high density rigid Polyurethane foam
    HeaterExplosion-proof type SUS#304 stainless steel fins radiator pipe heater
    CompressorFrance Tecumseh compressor
    LightingHeat resistance
    Temperature sensorPT-100 dry and wet bulb sensor
    Observation windowTempered glass
    Testing holeDiameter 50mm, for cable routing
    Sample TraySUS#304 stainless steel, 2pcs
    Safety protection device

    Protection for leakage

    Over-temperature

    Compressor overvoltage and overload

    Heater short circuit

    Water shortage


    Applications

    1. To simulate test environment with different temperature and humidity
    2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…
    3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation
    4. Uncover test unit weakness in a short-term test with accelerated time effect

    Chamber Design Features

    1. High performance and quiet operation (68 dBA)
    2. Space-saving designed for flush installation to wall
    3. Full thermal break around doorframe
    4. One 50mm diameter cable port o left, with flexible silicone plug
    5. Accurate wet/dry-bulb humidity measurement system for easy maintain

    Programmable Controller

    1. PLC controller for test chamber
    2. Step types include: ramp, soak, jump, auto-start, and end
    3. RS-232 interface to connect computer for output

    Trade term:

    EXW Dongguan, China


    Lead time:

    Shipment for the above equipments is 20 days upon receipt of down payment.


    Payment term:

    T/T 50 % in advance, balance payment before delivery of goods


    Validity:

    This quote is firm for 30 days


    Warranty:

    One-year warranty on all parts, labor is not covered. Warranty coverage include shipment.
