    Accurate Bottle Axis Deviation Tester For Verticality Measurement

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 5078-HD
    Certification : CE、ISO
    Price : Negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Accurate Bottle Axis Deviation Tester For Verticality Measurement

    EQUIPMENT DETAILS OF 5078- HD BOTTLE AXIS DEVIATION TESTER
    DESCRIPTION

    Determination professional for food, cosmetics, pharmaceuticals and other industries of various bottle container vertical deviation, and is bottle factory , bottle users and research institutions to detect bottle verticality preferred instrument bias.

    PRINCIPLE

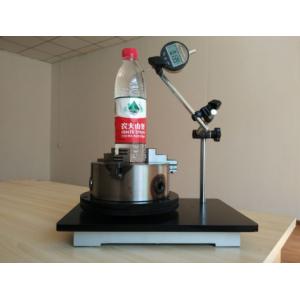

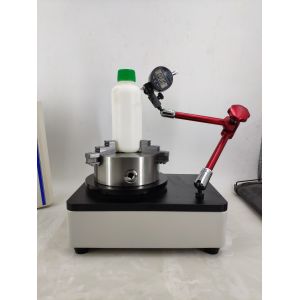

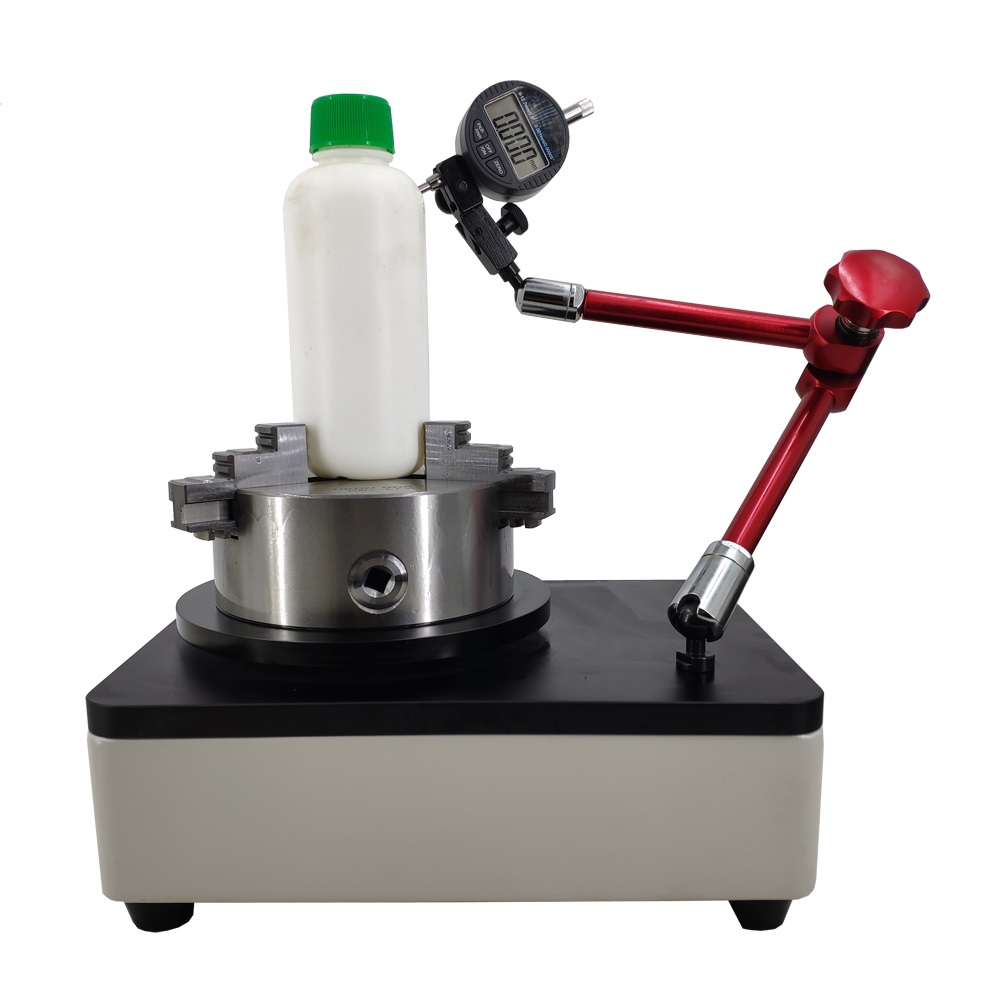

    Fix the bottom of the bottle on the rotating disk of the horizontal plate, make the bottle mouth contact the micrometer, rotate 360° to read the maximum and minimum values, and 1/2 of the difference between the two is the vertical axis deviation value. The instrument uses the high concentricity of the four-claw self-centering chuck, with a set of high-freedom brackets that can freely adjust the height and orientation, to meet the testing of various glass bottles and plastic bottles.

    STANDARD

    QB2357, QB/T1868, YY 0056, YBB 00012012, GBT 8452, GB 2637, YBB 00332002, YBB 00042012, YBB 00052012

    TECHNICAL PARAMETER
    Sample diameterPositive claw 3-55mm, reverse claw 55-145mm
    Centering chuckFour-claw/three-claw optional
    Measuring range0-12.7mm
    Measuring table positioning methodUniversal bracket
    Resolution0.001mm
    Indication error±0.005mm
    Measurement error≤0.05mm
    Measurable height5mm-400mm
    Data output methodCan connect to computer to output data to EXCEL, Word table for data statistical analysis; (optional)
    Measurement parallelism330mm*240mm*240mm
    Weight20kg
    The Introduction of Haida

    Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
