    Lab High-Current Arc Tester / Flammability Testing Equipment

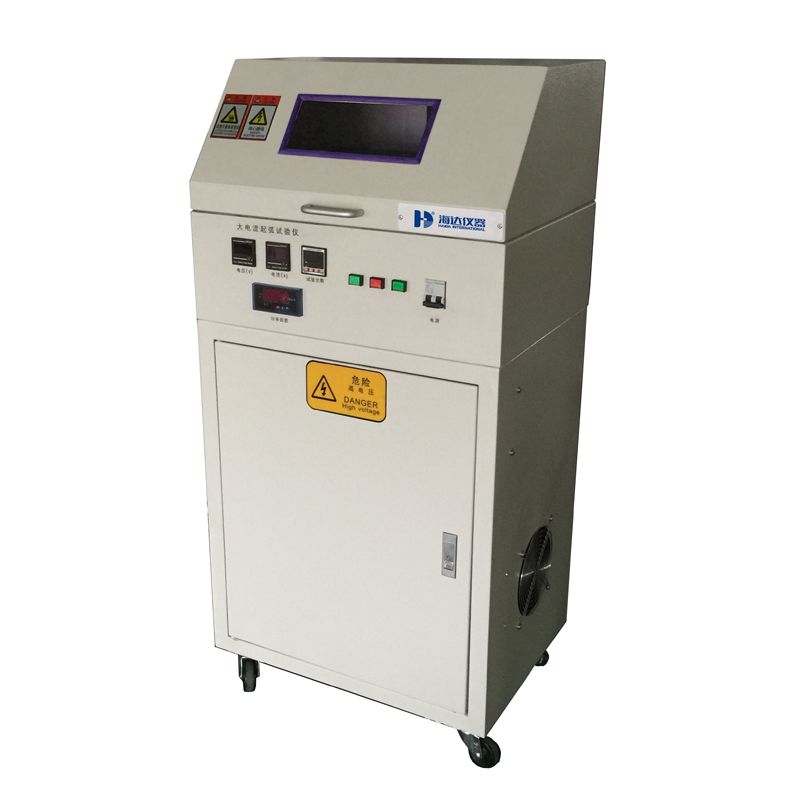

    High-Current Arc Resistance to Ignition Tester
    Product Description


    This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials. It simulates leakage currents between live parts of opposite polarity or between live parts and grounded metal components, measuring and assessing the arc resistance of insulating materials under specified voltages.

    Test Standard


    IEC 60950, GB/T 4943.

    Product Specifications
    Model6009-HD
    Test Voltage220V-240V
    Electrode Separation Speed254mm ±25mm per second
    Arc FrequencyApproximately 40 arcs per minute.
    Test ElectrodesFixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip
    Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip
    Electrodes are positioned at a 45° angle to the horizontal plane; tip curvature radius <0.1mm.
    Short-Circuit CurrentAdjustable inductive load to achieve a power factor of 0.5 and short-circuit current of 33A
    Key FeaturesIntegrated test chamber and load box (upper section for testing, lower for load). Enclosure: Painted steel with stainless steel/brass components. Electrodes: Copper (fixed) and stainless steel (moving), resistant to high temperatures and corrosion.
    Power SupplyAC 220V, 50Hz

    Lab Testing Equipment High-Current Arc Resistance to Ignition Test Machine
