Brand Name : | Haida |
Model Number : | 6012-HD |
Certification : | CE,,ISO |
Price : | Negotiation |
Payment Terms : | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
Supply Ability : | 300 Sets per Month |
Delivery Time : | 20 days after order confirmed |

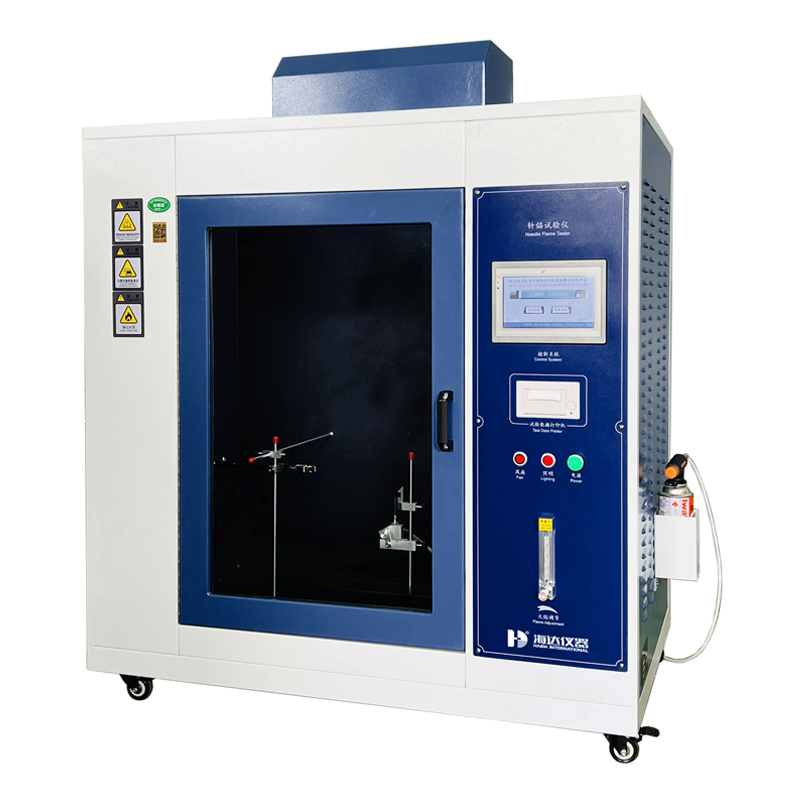

This instrument simulates small flames generated under fault
conditions (e.g., leakage currents, overheating, poor contacts) to
assess fire hazards. It is applied when glow-wire or
horizontal-vertical flame tests are unsuitable for small
components. If a sample ignites during glow-wire testing, the
needle flame test further evaluates combustion risks. Suitable for
parts of electrical/electronic products and household appliances
(e.g., terminal blocks, centrifugal switches, rice cooker sockets).
IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC
60335-1, GB 4706.1, UL 60065
Model | 6012-HD |
Chamber Volume | ≥0.5 m³, with glass observation door |
Internal Illuminance | <20 Lux |
Fuel | Butane gas (≥95% purity); no air ingress into burner tube (user-provided) |
Burner Specifications | Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm. |
Flame Height | Adjustable: 12mm±1mm (includes measuring gauge). |
Flame Temperature | 100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included. |
Temperature Display | Range: 0-1000°C; Resolution: 1°C |
Timer | Adjustable: 0-99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording. |
Drive Mechanism | Motorized |
Key Features | Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation. |
Power Supply | AC 220V, 50Hz |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training-
Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ:Q: Are you a trading company or manufacturer?
A: Integrated manufacturer with 21+ years specializing in test
equipment and 6 years of export expertise.
Q: What is your delivery timeline after order confirmation?
A:Standard orders: 10-25 working days
Stock orders: Ship within 3 days
Note: Lead times vary by product specifications and order volume.
Q: What are your warranty and after-sales service terms?
A:12-month comprehensive warranty on all testing machines
Industry-unique benefit: Complimentary controller repairs (including non-HAIDA units)
Post-warranty support: Dedicated technical team for troubleshooting, operational guidance, and complaint resolution
Q: How do you ensure product quality and service?
A:100% pre-shipment inspection with full performance testing
Global-ready design: Voltage auto-switching (110V/220V), international plugs, safety-certified indicators
Multi-tier training support:
✓ Instructional operation videos
✓ On-site engineer training (upon request)
Market-proven reliability:
Globally recognized by industrial users
Q: Do you offer product customization?
A: Yes, we develop tailored solutions based on your technical
parameters and application requirements.
![]() |
