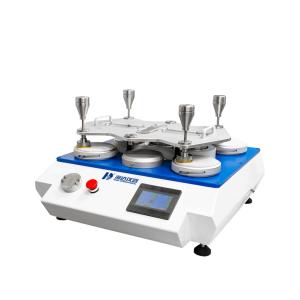

    5030-HD Martindale Abrasion Tester for Packaging Testing

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 5030-HD
    Certification : CE、ISO
    Price : Negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    5030-HD Martindale Abrasion Tester for Packaging Testing

    EQUIPMENT DETAILS OF 5030-HD MARTINDALE ABRASION TESTER
    5030-HD Martindale Abrasion Tester
    GENERL SPECIFICATIONS
    Packaging Dimensions: (W x D x H)70cmx75cmx47cm
    Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
    Gross Weight: 110KG
    INTRODUCTION

    It mainly applies to the resistance test of textile and outside layer, lining or under layer of the footwear or the similar fabric. Testing the samples as per the standard, test can be classified as dry test and wet test. And test the samples Lissajous-oriented for the regulated times, then observe the difference between it and the original samples and decide the grade of scrubbing resistance.

    STANDARD

    ASTM D4970, ISO12945-2 and other pilling degree test;

    ASTM D4966, ISO12947 and other fabric abrasion tests.

    FEATURES
    • Adopt with LCD touch screen, clear and easy to operate;
    • With pill and abrasion testing progress, can meet various international standards;
    • Use reduce and increase counting testing method for easy operation;
    • With imported PLC, reliable and suitable for long time test.
    STANDARD FEATURES
    Model5030-HD
    Stations6 Stations
    InterfaceLCD display
    Count displayProjected Count: 0 ~ 999 999 times; Cumulative count: 0 ~ 99 9999 times
    Maximum stroke24 ± 0.5mm, 60.5 ± 0.5mm
    Loadinga. Holder:200±1g
    b. Dress material counter weight: 395±2g
    c. Furnishings/Leather material counter weight: 594±2g
    d. Stainless steel butterfly slice: 260±1g
    Abrasion chunk effective rub diameterA model: 200g(1.96N,9KPa) , abrasion head¢ 28.8 -0.084mm
    B model: 155g(1.52N,12KPa) , abrasion head¢ 90 -0.10mm
    Pace speed of the holder50-2r/min
    Sample loading pressure hammer2385±10g
    consumablesBaize 6, Testing Cotton 6
    Diameter of abrasion fabric140mm
    Diameter of Specimen38mm
    PowerAC 220V/50Hz
    Overall dimension:50cmx60cmx32cm(L*W*H)
    Weight76 KG
