    5105-HD Automatic Condom Bursting Volume and Pressure Tester

    Ask Lasest Price
    Brand Name : HAIDA
    Model Number : 5105-HD
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C,D/A,T/T,D/P,Western Union,MoneyGram
    Supply Ability : 30 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

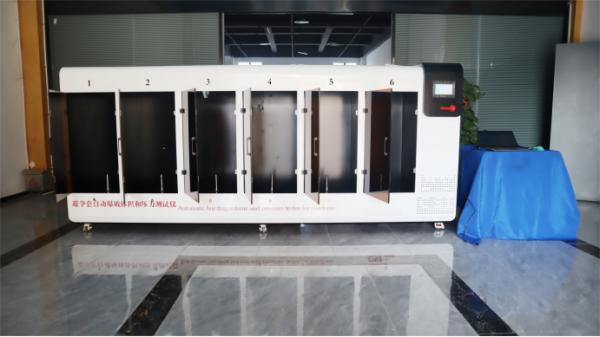

    5105-HD Automatic Condom Bursting Volume and Pressure Tester

    PRODUCT DESCRIPTION

    It is applicable to the determination of bursting capacity and bursting pressure volume of various condoms, rubber gloves and other products.

    DESIGN STANDARD

    GB7544,ISO4074

    FEATURES
    • The shell is made of Q235 material and treated with baking paint to prevent rusting;
    • Sampling of test position materials with AL surface anodizing treatment;
    • The foot sampling is made of stainless steel, with good stability and adjustable horizontal function;
    • Observe the sampling of high temperature resistant tempered glass with a thickness of 6MM for the observation door;
    • Independently control the pressure and volume calculation of each workstation;
    TECHNICAL PARAMETERS
    ItemDescription
    Test Position6
    Bursting Volume(0-60) L
    Burst Pressure(0-15.0)kPa;
    Bursting Volume Accuracy≤±3.0%
    Burst Pressure Accuracy≤±0.05kPa
    Inflation Rate(0.4-0.5)dm3/min, (24-30)dm3/min(automatic adjustment)
    Pressure Sensor Pressure Range0-30KPA
    Rotation Speed0-10R/MIN Step-less speed
    Position MaterialAL surface anodizing treatment
    Air Pressure0.4~0.5mpa
    Dimension3600*650*1500mm
    Power220V,50Hz
    HAIDA INTRODUCTION

    Founded in 2004, Haida ® is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series (AES), Universal Tensile Machine (UTM), Paper & Packaging (P&P), Foam, Furniture & Optical (FFO), also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
