    5084-HD Leak Burst Tester for Paper Packaging Compression Tests

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 5084-HD
    Certification : CE、ISO
    Price : Negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

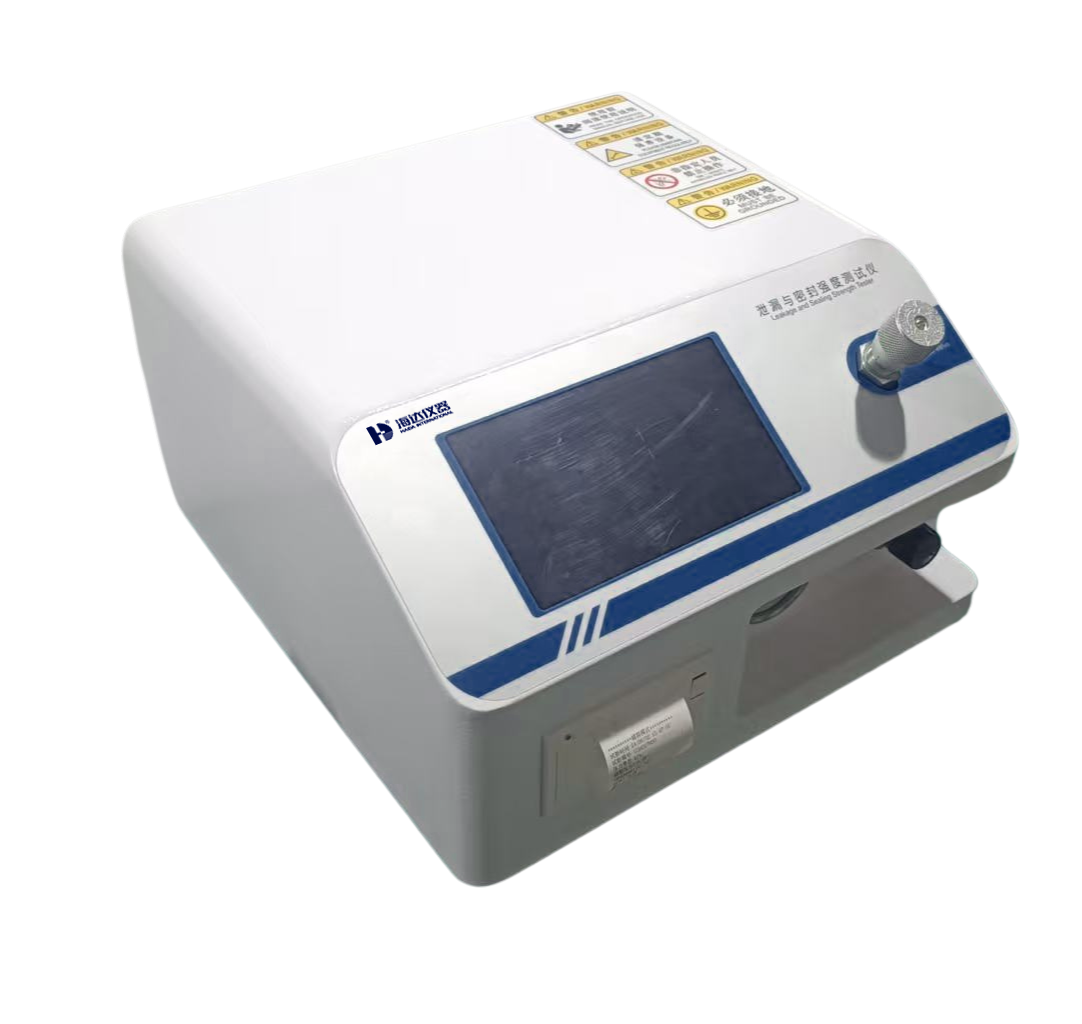

    5084-HD Leak Burst Tester for Paper Packaging Compression Tests

    EQUIPMENT DETAILS OF 5084-HD LEAK BURST TESTER
    PRODUCT DESCRIPTION
    The leak burst tester is professionally used to test the comprehensive sealing performance of various soft packages (such as heat-sealed/bonded aseptic packaging, hoses) and bottle caps and bottles. It can quantitatively measure the sealing strength, heat-sealing quality, whole bag bursting pressure, and sealing leakage, analyze the material's compressive and bursting strength, and evaluate the bottle cap's sealing, connection release strength, material stress strength, as well as the bottle's compression resistance, burst resistance, and overall sealing pressure resistance of the hose, achieving all-round reliability verification from edge sealing to connection parts.
    DESIGN STANDARD
    ASTM F1140, ASTM F2054,ISO 11607-1, ISO 11607-2
    TECHNICAL PARAMETERS
    ItemDescription
    Test range0.00 ~ 600.00Kpa (standard configuration)
    Air source pressure0.5MPa ~ 0.7MPa (air source user-provided)
    Air source interfaceΦ6 mm polyurethane tube
    Dimensions400 (L) * 400 (W) * 240 (H) mm
    Test seat size280mm (L) * 380mm (W) * 380mm (H) (can be customized)
    Net weight30kg(Including Test Fixture)
    The Introduction of Haida
    Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
