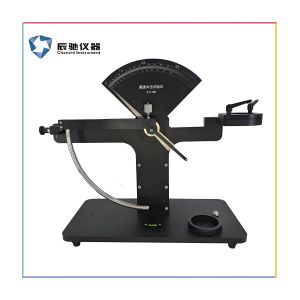

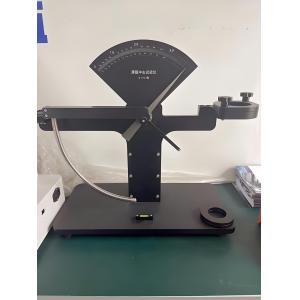

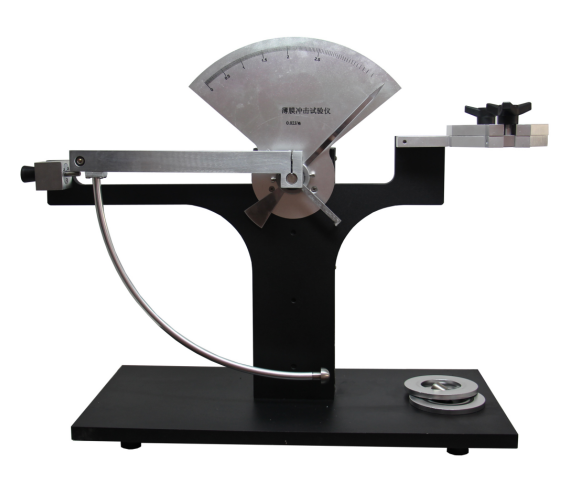

    Digital Pendulum Impact Tester for Film and Paper Packaging

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 5086-HD
    Certification : CE、ISO
    Price : Negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Digital Pendulum Impact Tester for Film and Paper Packaging

    PRODUCT DESCRIPTION

    This product uses a standard pendulum head and a certain weight of pendulum arm impact to measure the pendulum impact resistance of plastic films, sheets, and composite films. Such as the impact toughness of PE/PP composite films, aluminized films, aluminum-plastic composite films, nylon films, plastic rubber and other film materials used in food and medicine packaging bags, as well as metal foil materials. It can also be used to test the pendulum impact resistance of paper and paperboard, such as aluminized paper for cigarette packages, aluminum-plastic paper composite materials for Tetra Pak packaging, etc.

    PRINCIPLE

    This instrument uses a semi-spherical punch to impact and break the sample at a certain impact speed, thereby measuring the energy consumed by the punch, and using this energy to evaluate the anti-pendulum impact energy value of the film sample.

    DESIGN STANDARD

    GB/T8809, ASTM D3420

    TECHNICAL PARAMETERS
    ItemDescription
    Capacity3J
    Scale value0.01J
    Pendulum swing radiusR280 mm
    Pendulum angle90°
    Impact speed2.5m/S
    Impact head sizeΦ12.7 mm
    Sample holder diameterΦ60, Φ89mm
    Sample size100 X 100 mm
    Dimensions780 X 250 X 600 mm
    Weight35kg
    The Introduction of Haida

    Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
