    Heat Sealing Tester for Paper Packaging ISO Standards

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 5088-HD
    Certification : CE、ISO
    Price : Negotiation
    Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

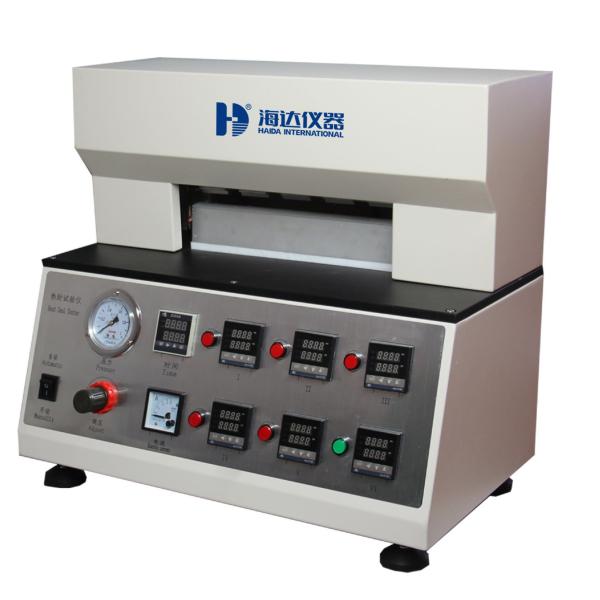

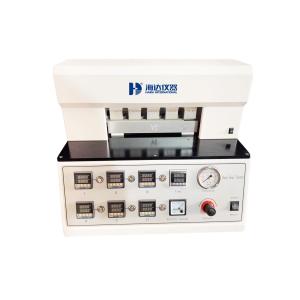

    Heat Sealing Tester for Paper Packaging ISO Standards

    PRODUCT DECRIPTION

    Heat sealing tester adopt hot-pressing sealing method which is used to determination of plastic film base material, flexible packaging composite film, coated paper and other heat sealing compound film of heat sealing temperature, heat sealing time, heat sealing pressure parameters , to provide users with accurate heat sealing test index. Fully digital control system, the key parts adopt international famous brand products, a high degree of automation, easy operation.

    TEST STANDARD

    ASTM F2029, QB/T 2358, YBB 00122003

    TECHNICAL PARAMETERS
    ItemDescription
    Heat sealing temperatureRT+10~250℃
    accuracy±1℃
    Heating sealing pressure0~0.7Mpa(Adjustable)
    Heating sealing time0.01~99.99s(Adjustable)
    Heating sealing surface(L*W)40mmx10mm * 5 stations
    Heating methodSingle heating or double heating; upper and lower sealing knives can be individually switched and individually temperature controlled
    Test modeManual mode / automatic mode (Manual mode is controlled by foot switch, automatic mode is controlled by adjustable delay relay);
    Air pressure≤0.7MPa (user-supplied)
    Machine Dimension(L*W*H)550*330*460mm
    Net weightAround 35kg
    Power1-PH, AC 220V,50Hz
    Standard configurationFoot switch + Air supply line + Air filter + Power cord
    The Introduction of Haida

    Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
