APPLICATIONS & TEST PURPOSE:
This machine tests the pull-out lifespan of the pull-out tube, the
lifespan of the showerhead button, and the swing of the water
outlet to evaluate the quality of the samples.
TEST STANDARD: ASMEA112.18.1-2005; CSAB125.1-05; GB18145; EN817
STANDARD FAETURES:
1. Test samples: 4 sets (1 set of pull-up water divider, 1 set of
buttons, 2 sets of left and right swing)
2. Lifting function parameters:
① Function of the water divider: 0-20mm can be set
② Speed range: 0-20 times /min can be set
③ The action mode of the water distributor: The cylinder clamps and
pulls down → releases the cylinder
→ returns to the hose, which constitutes one cycle of action
3. Button function parameters:
① Button function: Normal water supply
② Button pressing speed: 5-30 times per minute
4. Left and right swing function parameters:
① Faucet left and right swing function: 2 sets of workstations
② Angle: Adjustable ±90 degrees
③ Speed: 5-30 times per minute
5. Frequency setting: 1 to 99999999 times can be set
6. Control mode: Set by PLC
7. Operating mode: 7 "color touch screen
8. Power Supply: 380V 50HZ
9. Air source: 6kg
10. Material: SUS304 stainless steel

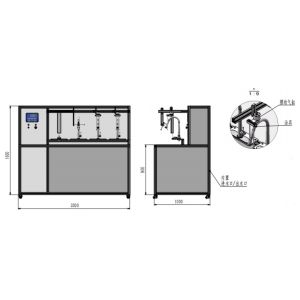

11. Note: The equipment is manufactured based on the design
drawings
12. Hot and cold water: American standard water supply method,
dynamic pressure 0.3-0.4Mpa
13.① At Workstation 1,
1#water is introduced → the cylinder is lowered → the machine claw grasps and lifts the head → it is lifted up → the machine claw is released → the water circuit is disconnected (this is a cycle), and the count
is 1 time. Repeat the above count
2# Pass water → Lower the cylinder → Grasp and lift the head with
the machine claw → Lift up → Press down again (Passing water is
also fine, not passing water is also fine)
② Workstation 2: Shower head switching life (a. The two cylinders work alternately left and
right. b. The cylinders can rotate and move 360°. c. The fixture
connected to the shower head can also be adjusted 360°.)
③ Workstation 3 and Workstation 4: A. Add a torque sensor for left
and right rotation, which can adjust the force, Angle and switch
B. The Angle can be adjusted. The height of the machine head, front
and back, and left and right can all be adjusted.
