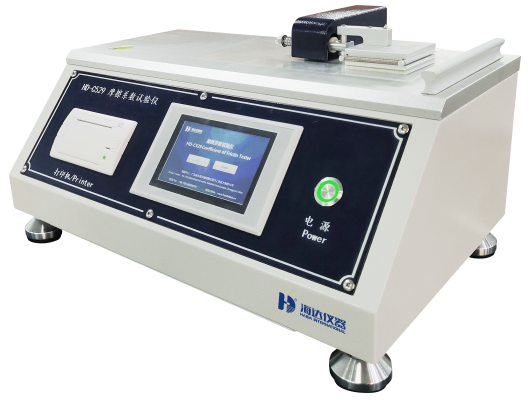

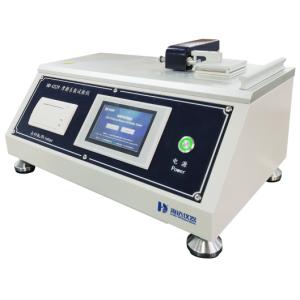

EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER

    Buy cheap EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER from wholesalers

    Buy cheap EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER from wholesalers
    • Buy cheap EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER from wholesalers

    EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 5093-HD
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C,T/T,D/A,D/P,Western Union,MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER


    EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER

    EQUIPMENT DETAILS FOR 5093-HD FILM COEFFICIENT FRICTION TESTER

    PRODUCTS DESCRIPTION

    This tester is in accordance with the standards of GB 10006-88 and ISO 8295-1986. It is used to measure the dynamic and static friction coefficients of non-sticky plastic films and sheets with a thickness of less than 0.2 mm when sliding on themselves or on the surface of other materials. It can also be used for products such as paper, textiles, rubber, aluminum foil, printed materials and screen protective films. The smoothness of the tested product can be judged by the measured value of the friction coefficient.

    TESTIGN STANDRAD

    GB 10006-88, ISO 8295-1986

    FEATURES

    (I) Hardware Features

    1. This tester uses stepper motor components for testing, which has better position accuracy and motion repeatability;

    2. This tester uses dual guide rails and dual linear bearings, which have the advantages of accurate positioning, smooth movement, quietness, and easy maintenance;

    3. The overall appearance of this tester adopts a paint spraying process, which has high rust resistance and beautiful appearance.

    (II) Software Features

    1. This tester uses a touch screen for control, which is easy to operate and improves test efficiency;

    2. This tester has a built-in direct thermal line printer, and the measured value can be printed after the test is completed;

    3. This tester uses travel limit protection and abnormal fault alarm prompts to ensure safe operation.

    OPERATION PRINCIPLE

    Controlled by the touch screen, the touch screen outputs the signal to the stepper motor driver, and the stepper motor runs according to the set program. The operation of the stepper motor drives the control force value test module to perform uniform linear motion.

    Before the test, pull up the straight handle, pass the sample through the bottom of the handle, put down the handle, and then fix the sample on the weight module. During the test, the force value test module performs uniform linear motion, and the friction coefficient is calculated by the force value test system. The measured value is printed out by the built-in printer.

    STANDARD FEATURES

    Specifications

    5093-HD

    Control mode

    touch screen control

    Test stroke

    1-200mm

    Test speed

    100±10mm/min (speed adjustable)

    Slider weight

    200±2g (others can be customized)

    Upper sample size

    63mm*63mm (L*W)

    Lower sample size

    80mm*200mm (L*W)

    Force test accuracy

    ±0.02N

    Measuring range

    0.001-5N (expandable)

    Instrument dimensions

    Approx. 490*320*210mm (L*W*H)

    Usage environment

    indoor temperature 20±10, relative humidity <85%

    Power supply

    1 AC220V

    Machine weight

    Approx. 18kg

    Power

    Approx. 350W

    Main test items

    Determination of sliding static friction coefficient and dynamic friction coefficient of materials such as plastic film and paper

    Haida International Equipment Co,Ltd

    Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

    Company facility 1 Company facility 2 Company facility 3

    WHY CHOOSE US?

    • Design & Production : Solution Consultation for each order
    • Recommend the most cost -performance machine
    • Research & Develop the suitable one for Special- designed Model.
    • Shipping & Delivery: One-Stop Service
    • Production- Deliver to your door - Installation & Training- Technical Support
    • Warranty
    • 1 year warranty with lifetime technology support
    • After-Sale Service
    • React within 2 Hours
    • Video inspection & on-site service combined

    FAQ

    Q: How about your warranty?

    A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

    Q: What is the order process?

    A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

    Q: Can we visit your factory before order?

    A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

    Q: Do you accept customization service?

    A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
