Li-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test Machine

    Buy cheap Li-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test Machine from wholesalers

    Buy cheap Li-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test Machine from wholesalers
    • Buy cheap Li-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test Machine from wholesalers

    Li-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test Machine

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-H213-5V
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

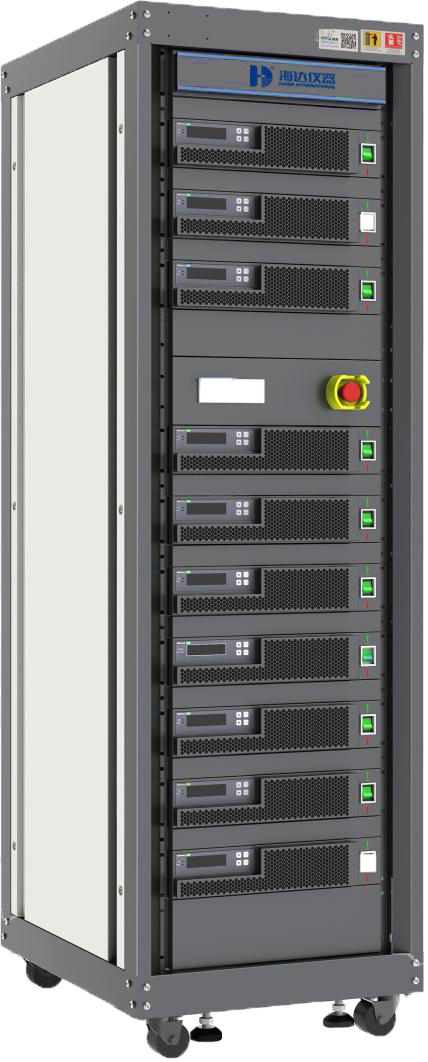

    Li-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test Machine


    Power Battery Cell Testing System 5V


    Description:


    Power battery cell testing system applied in Li-ion battery, lead acid battery, nickel-cadmium battery testing and quality control, can realize the integration of charge and discharge data monitoring.


    Power batterypack eol testing system


    Product Function Test


    1. Cycle Life Test
    2. Charging/Discharging Test
    3. Battery Capacity Test
    4. Temperature Characteristic Test
    5. Charge Retention Test
    6. High-Speed Working Condition Pulse Test
    7. Static/Dynamic SOC Test
    8. DCIR Test


    Product Advantages


    1. Support single battery voltage consistence test;
    2. Support multi-channel charge-discharge curve comparison;
    3. Support multi-channel parallel;
    4. Power factor value up to 0.99;
    5. Anti-reverse connection and data protection;
    6. Battery discharge and energy feedback efficiency ≥90%; 7. Modular design, easy for maintenance;
    8. Support RS485/CAN communication, baud rate is changeable;
    9. Support DBC import at one-click;
    10. Support user-defined BMS values as control/protection parameters;
    11. BMS voltage and current following test;
    12. User-defined login management rights are supported.


    Technical Parameters


    ModelsHD-H213-5V
    AC parametersWiring methodThree-phase five-wire system
    Power supply voltage380±10% VAC
    Power supply frequency50±5% Hz
    Power factor> 0.99
    Max. power feedback efficiency≥ 75%
    THD<5%
    DC parametersOutput current30A, 60A, 100A, 150A, 300A
    Single channel voltage range0.8V~5V
    Voltage accuracy± 0.02% F.S
    Voltage resolution0.1mV
    Current accuracy± 0.02% F.S
    Current resolution0.1mA
    Current response time5ms(10%~90% F.S)
    Current switching time10ms(-90%~90% F.S)
    Min. Working Condition Simulation interval10ms
    Upper computer software functionCharging modeCC, CV, CCCV, CP etc.
    Discharge modeCC, CV, CP, CR etc.
    Other working modeStill,Pause,Working condition test,Pulse test,DCIR
    Test cut-of conditionBattey voltage, current, time, capacity, temperature
    Data export FormatExcel, TXT etc.
    Data recording interval10ms
    Editable stepMax.10000
    Programmable stepMax.10000
    Nested loopMax.10 layers
    Software protectionOCP/OVP/UVP/Reverse or wrong connection protection/ Protection for abnormal communication
    Third-party Device IntegrationSupport linkage of temp. chamber, MTV/MTS, and pressure sensor
    Other parametersIP gradeIP20
    Working temperature0ºC~40ºC
    Cooling methodForced Fan-cooled
    Noise<75dB
    Cabinet size(W*D*H mm)600*850*1030 / 600*800*1980

    Details


    About us
    Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
    Li-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test MachineLi-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test MachineLi-ion Battery And Acid Battery Cell Testing System Cycle Life Tester Capacity Test Machine

    Why choose us?

    1.Design & Production : Solution Consultation for each order
    Recommend the most cost -performance machine
    Research & Develop the suitable one for Special- designed Model.
    2.Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
    3.Warranty
    1 year warranty with lifetime technology support
    4.After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined


    FAQ


    Q: How about your warranty?

    A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.


    Q: What is the order process?

    A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.


    Q: Can we visit your factory before order?

    A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


    Q: Do you accept customization service?

    A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
