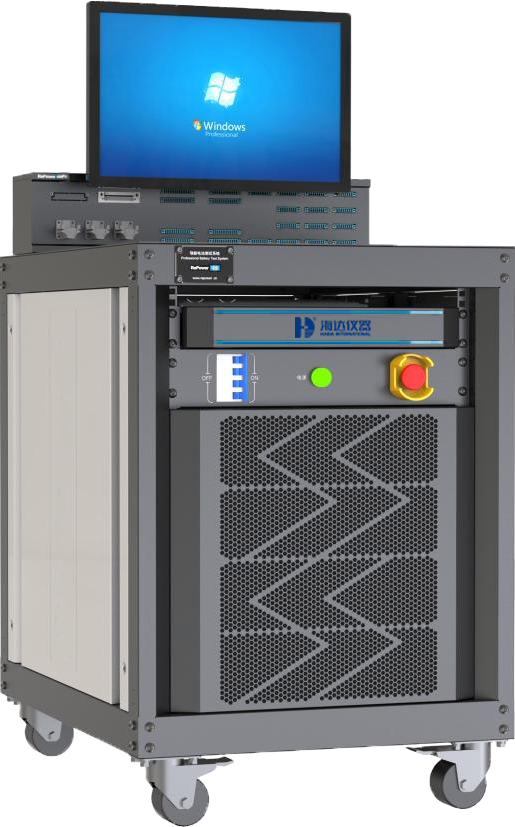

    PCB Battery Protection Board Testing System Power Battery Pack Protection Board Test System Battery Test Machine

    Ask Lasest Price
    Brand Name : Haida
    Model Number : HD-H219
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    PCB Battery Protection Board Testing System Power Battery Pack Protection Board Test System Battery Test Machine

    PCB battery protection board testing system


    Description:

    PCB battery protection board testing system applied in the testing of power battery pack protection board system, testing of PCB performance and its technical items, and generated a complete testing report.


    PCB Battery Protection Board Testing System Power Battery Pack Protection Board Test System Battery Test Machine


    Product Function Test

    1. Balanced Current Measurement Verification
    2. Over-Charge And Over-Discharge Measurement Verification
    3. Quiescent Current Measurement
    4. Protection Delay Time Measurement
    5. Charge And Discharge Protection
    6. On-Resistance Test
    7. Current Limiting Test
    8. Temperature Protection Test


    Product Advantages

    1. Composed by virtual battery, short-circuit free, safety guaranteed.
    2. Pluggable design of virtual battery enables it to be extended, range from 4S to 36S.
    3. Software supports modular setting of testing projects, production validation and research and development, research-oriented testing, and other modes, supporting secondary development;
    4. Support manual start testing and one click start automatic testing, including button start, barcode start, PLC start testing, etc;
    5. Support multi-channel independent testing to improve efficiency and production capacity;


    Technical Parameters

    ModelsHD-H219-16~24S 100A/200A/300A
    Pack VoltageVoltage Measurement5-180V0.1% F.S1mV
    Simulated battery’s outputVoltage range100-5000 mV0.01%R.D ± 0.02% F.S0.1mV
    Current range11-5000uA0.01%R.D ± 0.1% F.S0.1uA
    Current range21-3000mA0.01%R.D ± 0.1% F.S0.1mA
    Simulated battery samplingVoltage range100-5000 mV0.01%R.D ± 0.02% F.S0.1mV
    Current range11-5000uA0.01%R.D ± 0.1% F.S0.1uA
    Current range21-3000mA0.01%R.D ± 0.1% F.S0.1mA
    Simulated batte's ability of absorbs currentCurrent range1-3000mA0.01%R.D ± 0.1% F.S0.1mA
    Temperature simulationTemperature range-50℃~300℃0.1%R.D ± 3% F.S0.1℃
    High precision constant-current sourceVoltage range1-5V0.1%FS0.1mV
    Charge current1-300A0.05%RD±0.05% FS0.1uA
    Discharge current1-300A0.05%RD±0.05% FS0.1mA
    RechargerVoltage range1-120V0.1% FS0.1mV
    Current range1-500mA1% FS0.1mA
    LoadVoltage range1-120V0.1% FS0.1mV
    Current range1-500mA1% FS0.1mA
    Basic function testOCV test
    Normal power consumption test
    Sleep power test
    Cell over-voltage protection and recoveQ test
    Cell under-voltage protection and recoveQ test
    Total voltage over-voltage protection and recoveQ test
    Total voltage under-pressure protection and recoveQ test
    Balance voltage and current test
    Charge and discharge over-current protection and recoveQ test
    Shok-circuit protection and recoveQ test
    High and low temperature protection and recoveQ test
    Signal function testVoltage sampling test,temperature sampling test,resistance sampling test, IO signal test
    Communication functionCANBUS / RS485 / RS232 / I2C / SUMBUS etc.
