    Flammability Tester Touch Screen Horizontal Flammability Test Equipment for Automotive Interiors

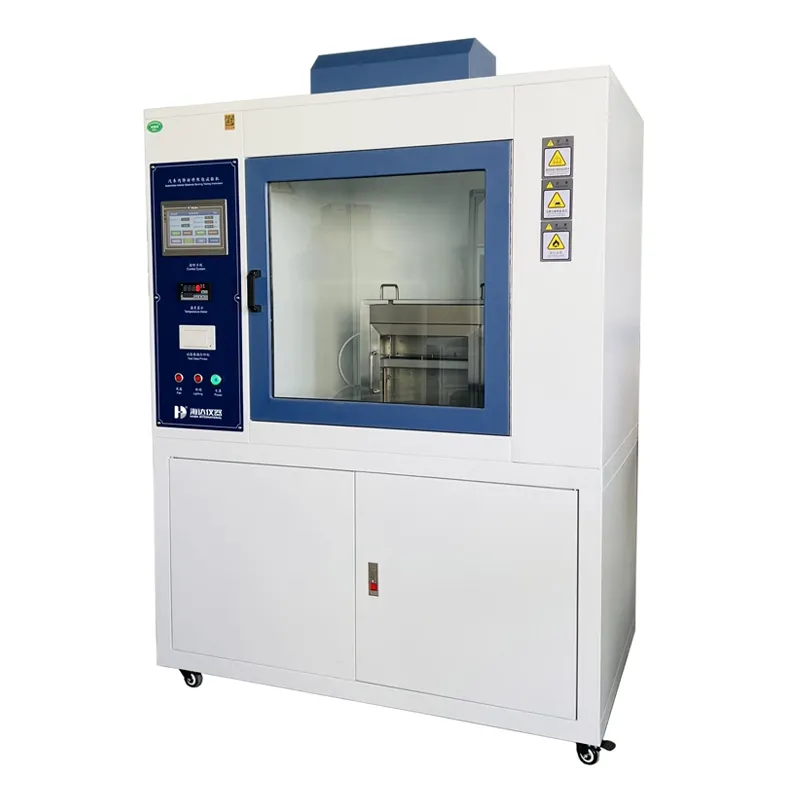

    Automotive Interior Materials Flammability Tester
    Product Description


    Automotive Interior Materials Flammability Tester is designed and manufactured in accordance with GB 8410-2006 to evaluate the horizontal burning characteristics of automotive interior materials.


    Test Standard


    GB 8410-2006, ASTM D5132, FMVSS 571.302, ISO 3795


    Products Advantages


    Stainless steel combustion chamber: Resistant to smoke and gas corrosion.

    Automated control system: Includes automatic ignition, gas supply, timing, and test termination.

    User-friendly interface: 7-inch color LCD touchscreen with real-time data display and printing.


    Product Specifications
    Model6021-HD
    Control System7-inch color LCD touchscreen + PLC (Programmable Logic Controller), with built-in test data printer.
    Display SystemReal-time monitoring of flame application time, burning time, and burning speed. Controls include flame start/stop and combustion length input.
    Overall Dimensions (L×W×H)1200×700×1500mm
    Combustion Chamber Dimensions (L×W×H)385×204×360mm
    Flame Application TimeAdjustable: 0-3200.0 seconds
    Burning TimeAdjustable: 0-3200.0 seconds
    Burner AngleFixed at 90° (vertical)
    Burner SpecificationsNozzle inner diameter: Ø9.5mm; Effective length: 100mm; Equipped with air adjustment holes
    Flame HeightAdjustable: 20-100mm (standard-compliant)
    Temperature DisplayDigital readout; Resolution: 0.1°C
    Steel RulerLength: 500mm; Accuracy: 1mm
    Fuel GasHigh-purity liquefied gas (user-provided)
    ConfigurationIncludes:
    • Control system
    • Combustion chamber
    • Burner assembly
    • Solenoid valve
    • High-voltage igniter
    • Temperature display
    • Signal control cables
    • Upper/lower sample holders
    • 500mm/1mm steel ruler
    Power SupplyAC 220V, 50Hz
