    High Precision Luer Taper Comprehensive Performance Tester

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 8035-HD
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

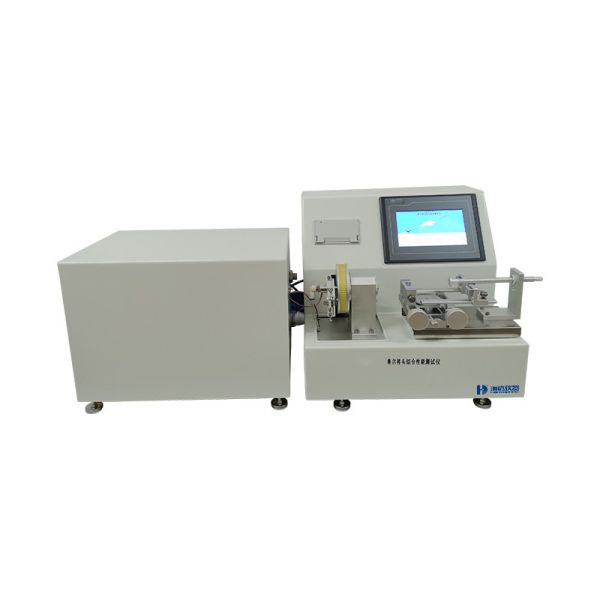

    High Precision Luer Taper Comprehensive Performance Tester


    Luer Taper Comprehensive Performance Tester


    Description:


    Luer Taper Comprehensive Performance Tester is a high precision device specially designed to evaluate and test the performance of Luer fittings with a variety of test functions including but not limited to leakage test, connection strength test, tightening torque test, etc. which plays a vital role in the research and development and manufacturing of medical devices.


    Test Standard:

    GB/T1962-2015, 1S080369-20, YY/T0916.20-2019
    High Precision Luer Taper Comprehensive Performance Tester


    Technical Parameters

    Model8035-HD
    Test StandardGB/T1962-2015, 1S080369-20, YY/T0916.20-2019
    Test itemPressure attenuation leakage,
    Positive pressure liquid droplet drop leakage,
    Negative pressure air leakage
    Stress cracking
    Anti axial load separation
    Anti torque separation
    Anti overload (sliding wire) performance
    Axial force0N~80N(error not greater than ± 2%)
    Internal water pressure0kPa~400kPa(Adjustable) with an error of no more than + 0.5%
    Separation force10N and 70N (The error less than 2%)
    Holding time1 .60S(not greater than 0.5s)
    Torque0.010N.m ~ 0.500N.m
    Negative pressure-10Kpa ~ -94Kpa (adjustable), error not greater than ± 1%
    Negative pressure leakage rate Resolution-0.0001Pa.m3/s
    Positive pressure leakage rate Resolution0.0001Pa.m3/s
    Nominal capacity1mL~60mL(adjutable)
    1mL~60mL(adjutable)20kg
    PowerAC 220V 50Hz, 300W
    Dimension440*350*384mm
    Partial list1 Machine *1
    2 One roll of printing paper,
    3 One set of fixtures (customizable)
    4. One set of weights
    5. Operating instructions,
    7. Equipped with positive and negative pressure air sources




    About us
    Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
    High Precision Luer Taper Comprehensive Performance TesterHigh Precision Luer Taper Comprehensive Performance TesterHigh Precision Luer Taper Comprehensive Performance Tester


    Why choose us?
    1.Design & Production : Solution Consultation for each order
    Recommend the most cost -performance machine
    Research & Develop the suitable one for Special- designed Model.
    2.Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
    3.Warranty
    1 year warranty with lifetime technology support
    4.After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined


    FAQ

    Q: How about your warranty?

    A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.


    Q: What is the order process?

    A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.


    Q: Can we visit your factory before order?

    A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


    Q: Do you accept customization service?

    A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
