    Rubber Sleeve Rebound Tester for Accurate Measurements

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 8039-HD
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Rubber Sleeve Rebound Tester for Accurate Measurements

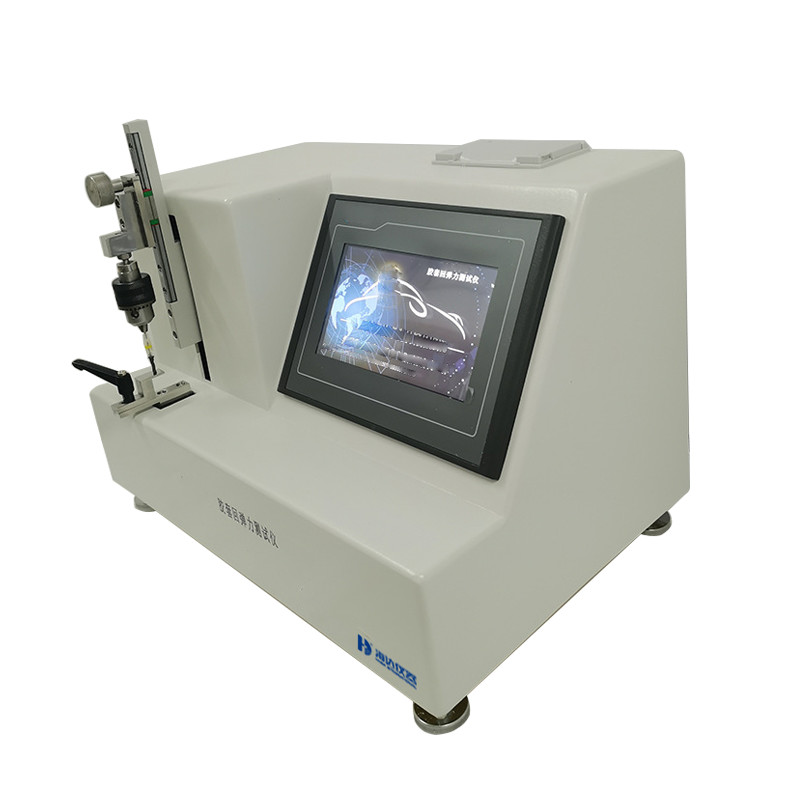

    Rubber Sleeve Rebound Tester


    Description:


    Rubber Sleeve Rebound Tester is used to measure and evaluate the ability of the lancet sleeve to return to its original shape after being squeezed or stretched by an external force. The tester uses high-precision force sensors and displacement sensors to monitor the force value change and deformation of the rubber sleeve in real time during the recovery process, so as to evaluate its resilience force characteristics.


    Test Standard:


    YYT1618-2018


    Rubber Sleeve Rebound Tester for Accurate Measurements


    Technical Parameters

    Model8039-HD
    Test StandardYYT1618-2018
    Test itemSingle use human vein blood sample collection needle rubber sleeve rebound
    Test Force range1~20N, error not greater than ±1%
    Resolution0.001N
    Test time1~999S
    Test speed50mm/min, 80mm/min, 100mm/min(error of no more than ± 2%)
    Measurement distance0~50mm
    Power off storageYes
    PowerAC 90V-240V/50Hz, 70W
    SensorHigh-precision force sensor (with software and hardware protection function)
    FixtureStainless steel (easy to grip)
    Force measuring mechanismbuilt-in
    PrinterAirborne needle printer
    Printing methodYou can print 8 or 10 test data or13 test data as well as the average and deviation values each time.
    Data storageUSB flash drive can be imported into the computer for storage
