    Lab Testing Equipment Fire Testing Equipment Touch Screen Glow Wire Test Machine

    Ask Lasest Price
    Brand Name : Haida
    Model Number : 6002-HD
    Certification : CE,,ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, D/A, D/P, Western Union, MoneyGram
    Supply Ability : 300 Sets per Month
    Delivery Time : 20 days after order confirmed
    • Product Details
    • Company Profile

    Lab Testing Equipment Fire Testing Equipment Touch Screen Glow Wire Test Machine

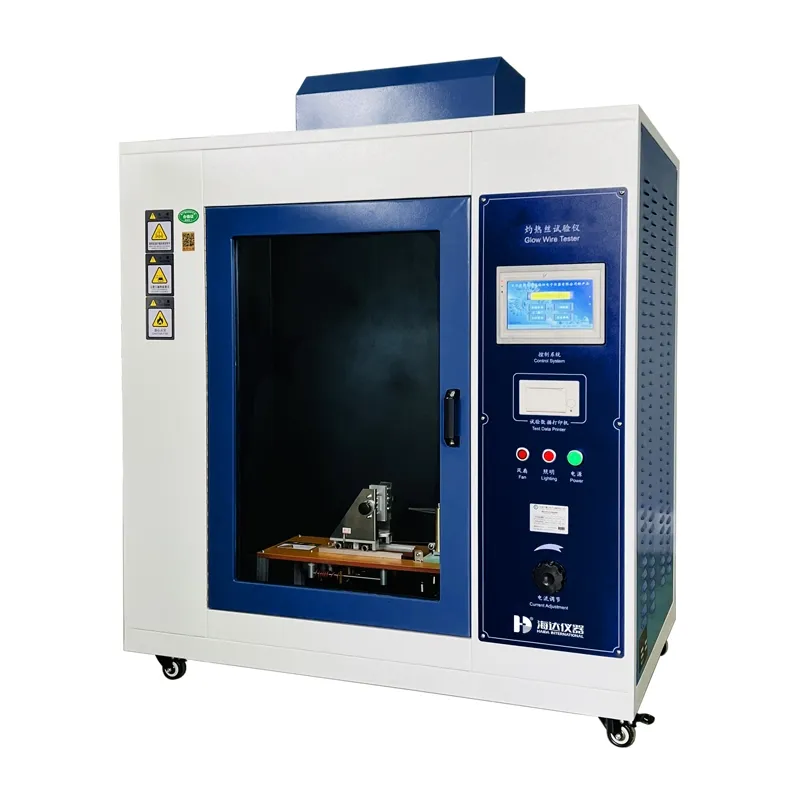

    Glow-Wire Tester
    Product Description


    The glow-wire test simulates thermal stress or ignition sources caused by overheated components or overloaded resistors in a short period, assessing fire hazards for parts or components under fault or overload conditions. It applies to plastic and non-metallic insulating materials used in electrical and electronic products, components, and household appliance parts, such as switch housings and relay sockets. This tester features a PLC + color LCD touchscreen control system with an intuitive interface and includes a built-in printer for recording test conditions and results.

    Test Standard

    IEC60695-2-10 / 11 / 12 / 13 - 2013, GB/T 5169.10, GB/T 5169.11, IEC 60884-1, GB 2099.1, IEC 60335-1, GB 4706.1, VDE 0620-1
    Product Specifications
    Model6002-HD
    Control System7-inch color LCD touchscreen + PLC (Programmable Logic Controller), equipped with a test data printer.
    Display System7-inch color LCD touchscreen for setting and displaying glow time (Ta), ignition time (Ti), flame extinction time (Te), glow-wire temperature, print interface, and operational status.
    Chamber Volume≥0.5 m³, with a glass observation door.
    Internal IlluminanceLess than 20 Lux.
    Glow-Wire TemperatureAdjustable from ambient + 10°C to 1000°C, measured using a Ø1mm nickel-chromium armored (K-type) imported thermocouple.
    Force Applied to Sample0.95 ± 0.10 N, with a penetration depth limited to 7.0 ± 0.5 mm (automatically sensed).
    Glow-WireMade of nickel/chromium alloy (>77% Ni / 20±1% Cr). The diameter before bending is 4.0 ± 0.07 mm, with other dimensions manufactured to standard tolerances.
    Movement Speed of Glow-Wire Tip10 mm/s to 25 mm/s (approaching or retracting from the sample).
    Wooden BoardWhite pine board, thickness >10 mm, placed 200±5 mm below the sample contact point.
    TimerAdjustable range: 0-999.9 seconds, accuracy: ±0.1 seconds. Glow time (Ta) is settable, while ignition duration (Ti) and flame extinction time (Te) are recordable.
    Key FeaturesAutomated control system. After initiation, the sample carriage automatically moves the specimen to the glow-wire and retracts after the set glow time. Features black interior, ventilation, lighting, and digital displays for easy observation and recording.
    Power SupplyAC 220V, 50Hz.
    Lab Testing Equipment Fire Testing Equipment Touch Screen Glow Wire Test Machine

    About us
    Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
    Lab Testing Equipment Fire Testing Equipment Touch Screen Glow Wire Test MachineLab Testing Equipment Fire Testing Equipment Touch Screen Glow Wire Test MachineLab Testing Equipment Fire Testing Equipment Touch Screen Glow Wire Test Machine


    Why choose us?
    1.Design & Production : Solution Consultation for each order
    Recommend the most cost -performance machine
    Research & Develop the suitable one for Special- designed Model.
    2.Shipping & Delivery: One-Stop Service
    Production- Deliver to your door - Installation & Training- Technical Support
    3.Warranty
    1 year warranty with lifetime technology support
    4.After-Sale Service
    React within 2 Hours
    Video inspection & on-site service combined


    FAQ

    Q: How about your warranty?

    A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.


    Q: What is the order process?

    A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.


    Q: Can we visit your factory before order?

    A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.


    Q: Do you accept customization service?

    A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
